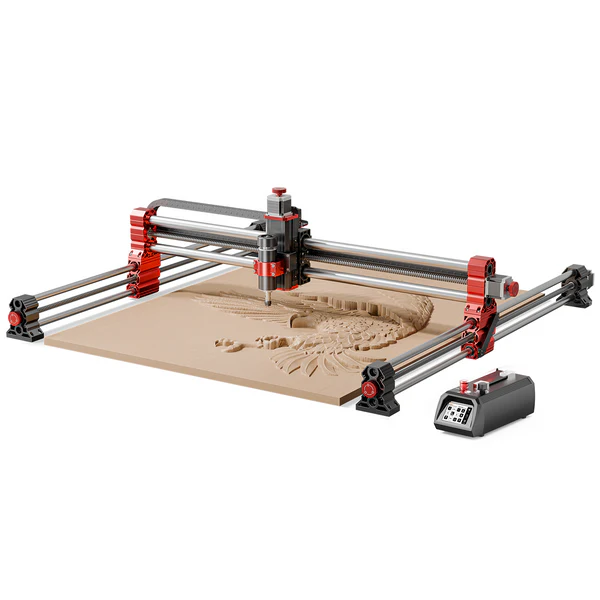

Two Trees TTC-H40 · Geotech, Tbilisi

A 1 × 1 m CNC router for furniture parts, large signs and full panels

The TTC-H40 works on a 1000 × 1000 mm table with a 500W spindle, ball screws and linear guides. It runs from its touch screen with USB or a TF card — room for real production jobs.

from 5 799 ₾set-up and training included
  • 1000 × 1000 mm work area
  • 500W spindle
  • Ball screws + linear guides
  • 1-year local warranty

Prices in GEL with shipping, customs and VAT included. Instalments available.

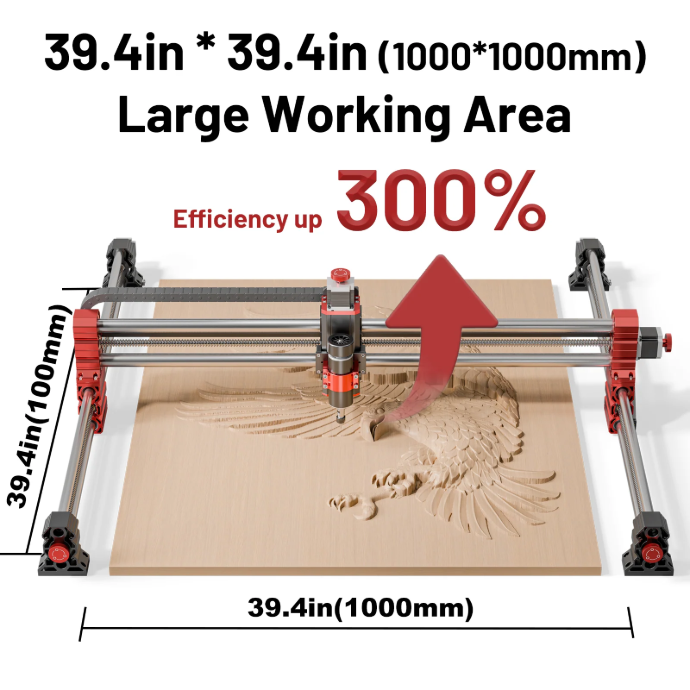

1000 × 1000 mmwork area
100 mmZ travel
±0.05 mmengraving accuracy
500 mm/s²max acceleration

What you can make with the TTC-H40

Furniture parts, big signs, wall panels and many small parts in one run.

Two Trees TTC-H40 video
Big carvingWhat the H40 can carve
Two Trees TTC-H40 video
Aluminium engravingMulti-material test on aluminium
Two Trees TTC-H40 video
A colourful projectFrom raw wood to a finished piece
Furniture parts and cabinet doorsLarge shop signsDecorative wall panelsBatch cutting of small partsAcrylic letters and logos3D reliefs and wall artSoft aluminium plates

What can the TTC-H40 work with?

With the right end mill and slow, shallow passes. Hard metals like steel are only for light engraving.

MaterialCarve / engraveCut throughNote
Solid wood, plywood, MDF✓✓Up to the Z travel, in several passes
Acrylic, PVC, plastics✓✓Use single-flute bits for clean edges
Carbon fibre, PCB✓✓Use a dust extractor
Aluminium, brass, copper✓✓Thin plates, light passes
Stainless steel✓—Light engraving only
Leather, paper✓—Better with the TC20 laser module

Choose your machine and package

Start with the machine only, or take a ready package — the bigger the package, the bigger the discount.

TTC-H40

TTC-H40

For production work on full-size panels.

Work area1000 × 1000 × 100 mm
Spindle500W
Speed1 800 mm/min
Accuracy±0.05 mm

Package

  • Vacuum cleaner M2
  • Milling cutter set 3.175 mm
  • MPG handwheel
  • Z-axis tool setter
  • Air cooling kit

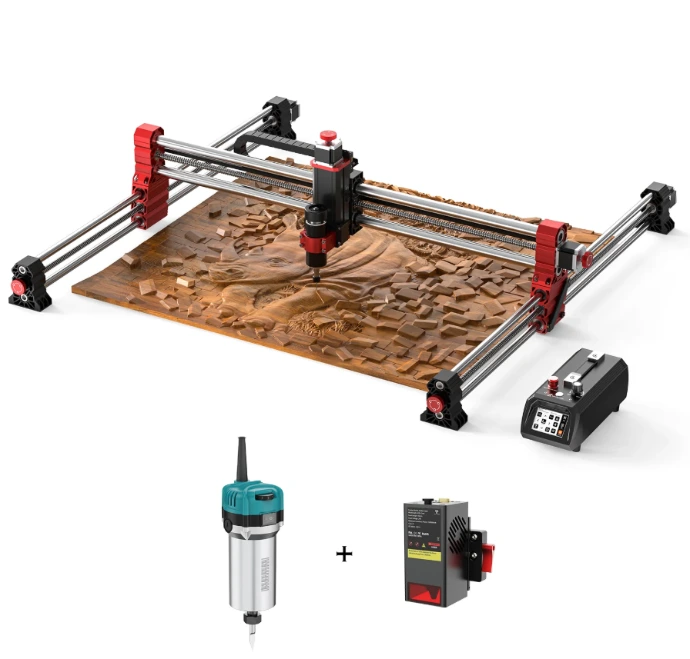

  • TC20 20W laser module
5 799 ₾−5%incl. VAT · set-up in Tbilisi included

Workshop package −5%, Pro package −10%. Not sure? Tell us what you want to make and we suggest the right one.

What is in the box

The TTC-H40 comes partly pre-assembled. In the standard box:

  • TTC-H40 frame, partly pre-assembled
  • 500W spindle motor
  • Controller with 3.5" touch screen

We assemble it on site with you, set up the software and run your first job together.

Two Trees TTC-H40

Specifications

Specifications

Work area and size

Work area (X × Y × Z)1000 × 1000 × 100 mm
Machine size1 292 × 1 290 × 404 mm
Weight38.3 kg
FrameAluminium alloy

Motion and accuracy

DriveBall screws
GuidesLinear guides
Engraving accuracy±0.05 mm
Max. engraving speed1 800 mm/min
Max. acceleration500 mm/s²

Spindle

Spindle motor500W (upgrade: 800W)
Spindle speed8 000–30 000 rpm
Collet / tool diameterER11, 0.5–7 mm

Control and software

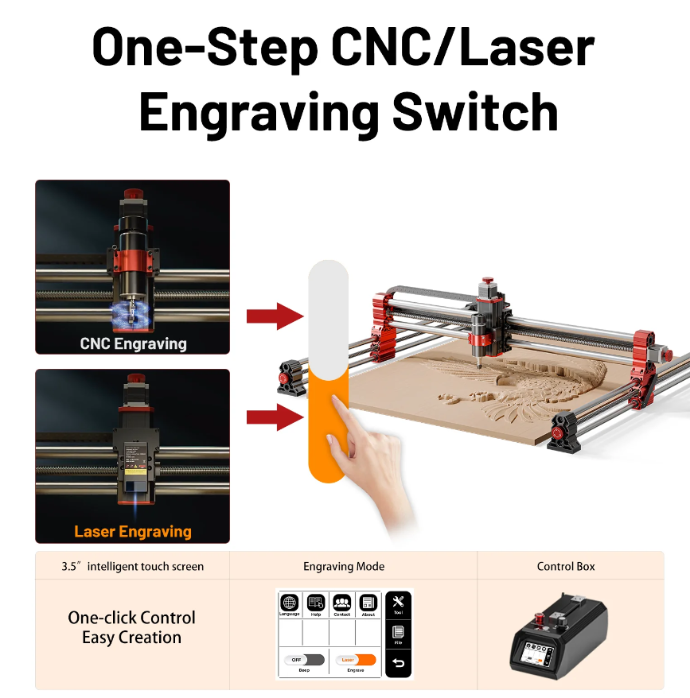

FirmwareOpen-source GRBL, CNC and laser
Screen3.5" touch screen, 480 × 320
ConnectivityUSB, TF card
SoftwareVectric, Fusion 360, Easel, Carveco Maker
Operating systemWindows, macOS, Linux

Power and safety

Power supply216 W dual-channel, 24 V
SafetyEmergency stop, spindle and laser protection

Source: official Two Trees specifications.

Geotech service

  • Assembly and setup by Geotech included in the price.
  • Sold and supported by Geotech in Tbilisi — installation, training and service in Georgia.

More TTC-H40 videos

Official Two Trees videos — press play to watch here.

Two Trees TTC-H40 video
How to set up the TTC-H40Step by step
Two Trees TTC-H40 video
Independent reviewLarge-format CNC for makers

Which Two Trees CNC fits you?

TTC3018 ProTTC-450 ProTTC-450 UltraTTC6050TTC-H40ED1
Work area300 × 180 × 40 mm460 × 460 × 80 mm460 × 460 × 100 mm600 × 500 × 100 mm1000 × 1000 × 100 mm300 × 200 × 120 mm
Spindle—775 motor, 8 000–30 000 rpm500W, 12 000 rpm500W, 12 000 rpm500W600W, 18 000 rpm
Drive—T8 lead screw—Ball screws + linear railsBall screws + linear railsBall screws + linear rails
Max speed1 500 mm/min800 mm/min3 000 mm/min5 000 mm/min1 800 mm/min3 000 mm/min
Engraving accuracy0.1 mm±0.05 mm±0.05 mmnot published±0.05 mm±0.01 mm
Automatic tool change—————5 tools
Best forLearning, PCB, small signsLearning and hobby work, signsSigns, reliefs, home businessBigger panels and traysFurniture parts, large signsAluminium and brass parts, automatic tool change
Price from1 319 ₾2 789 ₾3 589 ₾5 789 ₾5 799 ₾9 049 ₾
See itSee itSee itSee itSee itSee it

Why buy Two Trees from Geotech?

You get the same machine — plus setup, training and a local team in Tbilisi when you need help.

01

Assembly & first job

We assemble the machine and run your first job with you.

02

Software installed

Easel, Carveco Maker or Candle installed and connected on your computer.

03

Hands-on training

End mills, speeds, depths and safety, on your own machine.

04

1-year local warranty

Warranty handled here in Georgia — no shipping abroad.

05

Bits & spare parts

End mills, spindles, vacuums and the 4th axis in stock in Tbilisi.

06

Support in your language

Georgian and Russian support from our team.

What our customers say

Real reviews from our customers on Google.

Review on GoogleRead the full review on Google

Read all reviews on Google

Frequently asked questions

How much space do I need?

The machine needs a sturdy table of about 1.3 × 1.3 m plus space to walk around it. Tell us your room size and we will check.

What is in the packages?

Basic adds the bigger M2 vacuum and a set of end mills. Workshop adds the MPG handwheel, Z tool setter and air cooling kit (−5%). Pro adds the TC20 20W laser module (−10%).

What software do I need?

Free software works: Easel, Carveco Maker or Candle. ArtCAM and Fusion 360 also work. We install it and show you how to make your first file.

Do you deliver and set it up?

We deliver anywhere in Georgia. Set-up and training are free in Tbilisi; outside Tbilisi there is an extra charge.

What about warranty and parts?

1-year local warranty from Geotech. End mills, spindles and spare parts are in stock in Tbilisi.

Not sure the TTC-H40 is right for you?

Tell us what you want to make and from what material — we will tell you honestly which machine fits.
