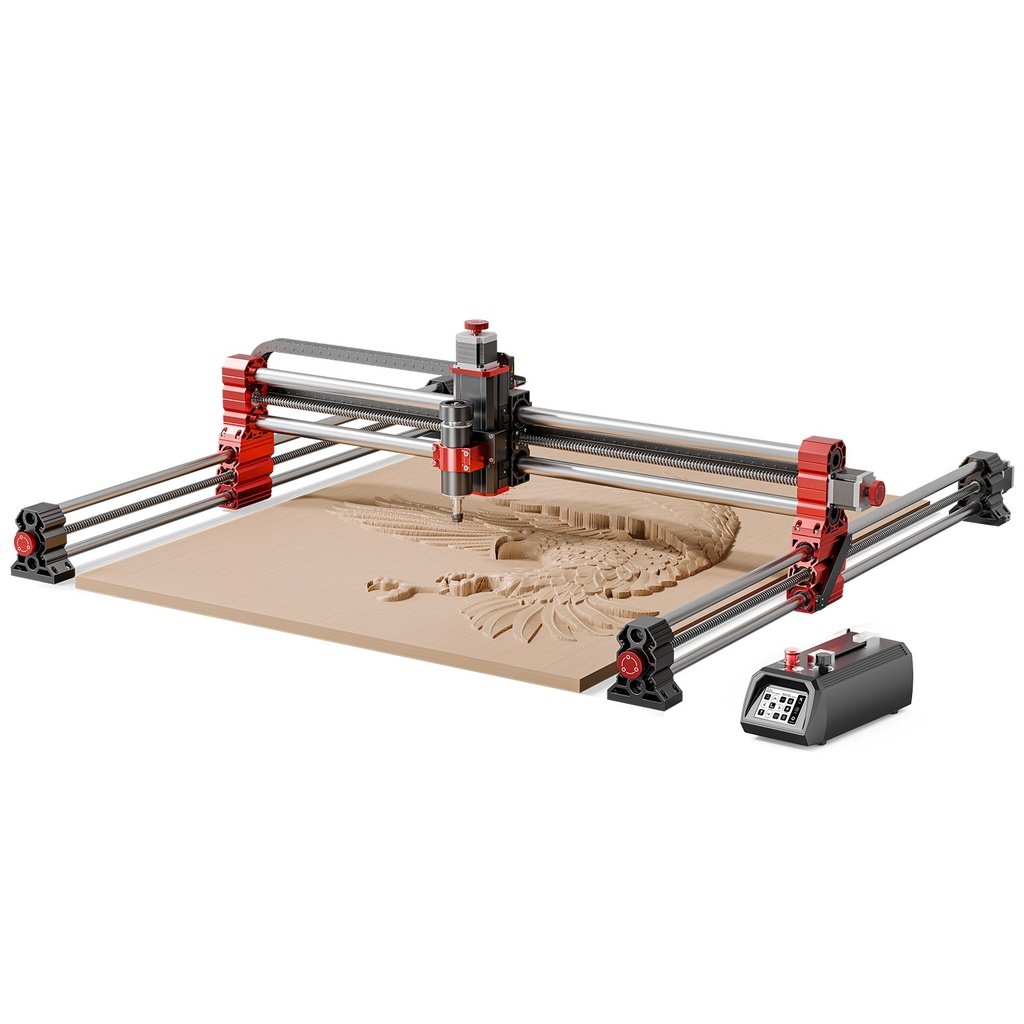

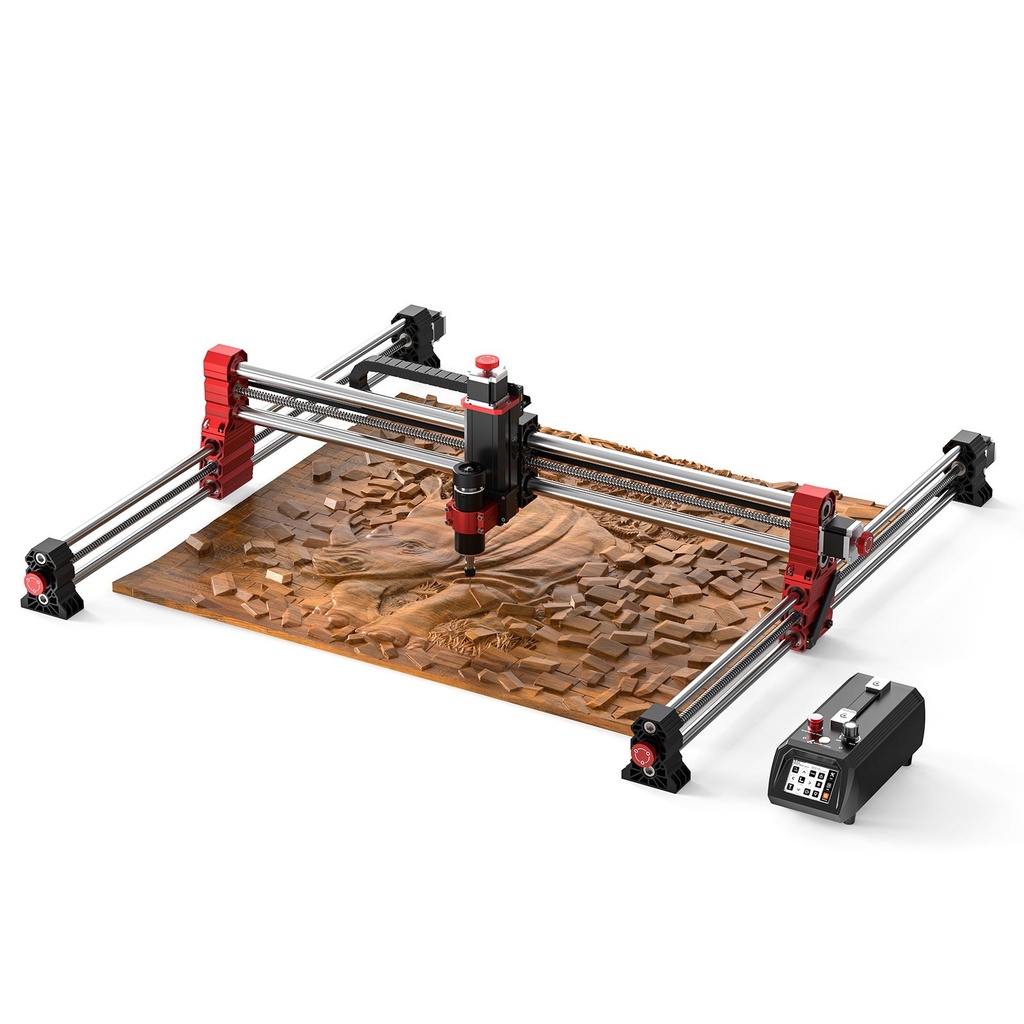

Two Trees TTC-H40 CNC Router 1000 × 1000

Large-format 1000 × 1000 mm CNC router with sealed linear rails, a 500W spindle and USB, Wi-Fi and TF-card control — built for sign-making, furniture parts and full-size panels.

✔ Assembled by Geotech

The price includes professional assembly, calibration and training by Geotech engineers. Your machine is delivered tested and ready to work.

Warranty: the warranty covers machines assembled and set up by Geotech. This lets us guarantee correct assembly and calibration, and help you quickly whenever you need support.

Key features

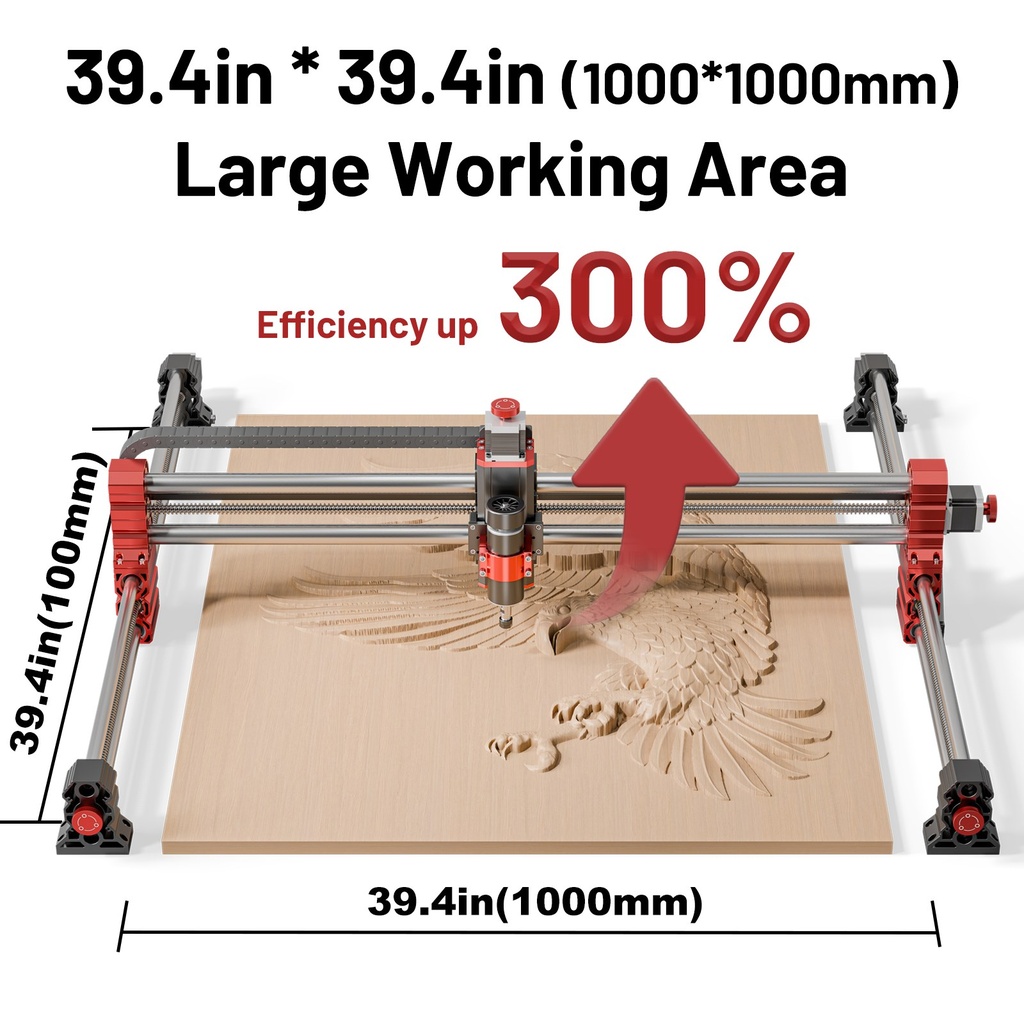

  • 1000 × 1000 × 100 mm working area
  • Sealed linear rails and hardened steel guides — low maintenance
  • Direct-drive stepper motors on trapezoidal screws for precision and low noise

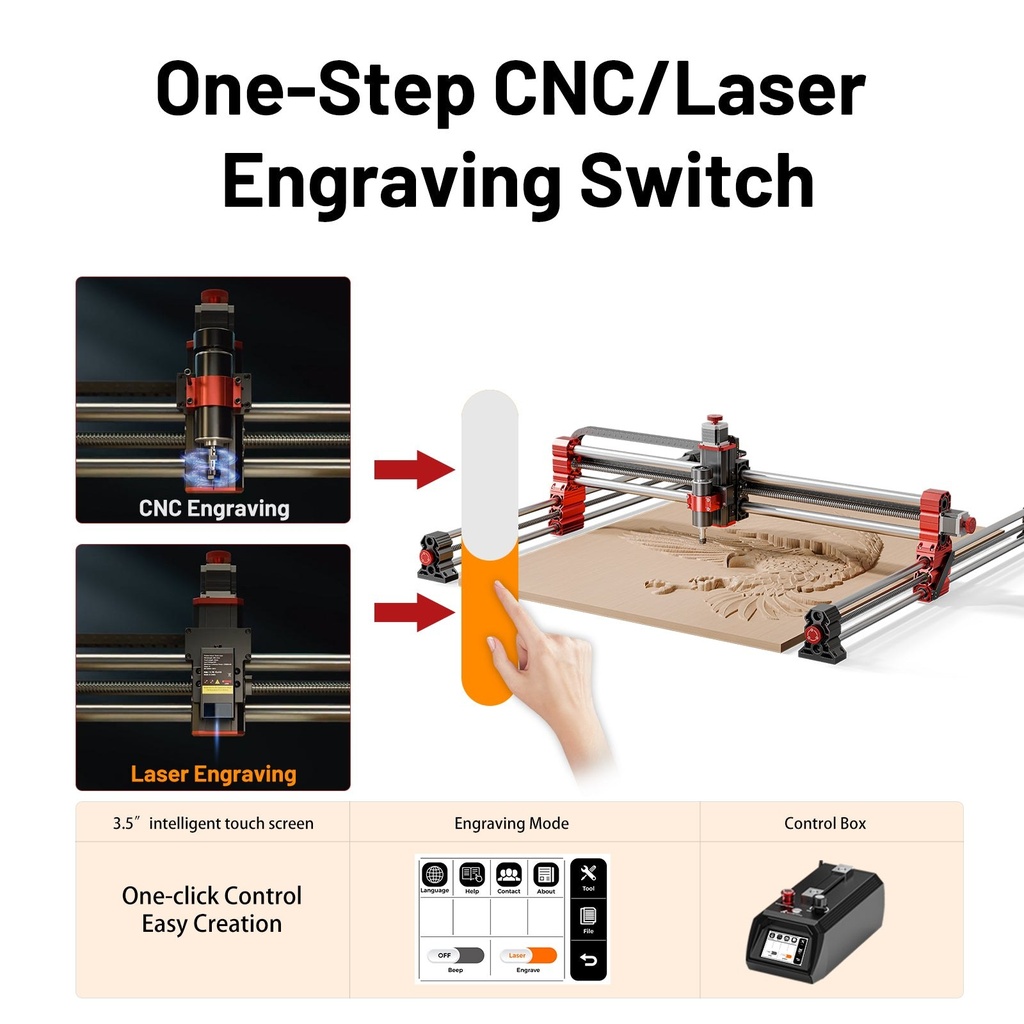

  • USB, Wi-Fi (2.4 GHz) and TF card; 3.5" touch screen
  • Up to 120 hours continuous operation
Two Trees
5,799.00 ლ 5,799.00 ლ (Tax included)

  • Brand
  • Machine Type
  • Working Area
  • Spindle
Add To Cart

Brand: Two Trees
Machine Type: CNC Router
Working Area: 1000 × 1000 × 100 mm
Spindle: 500W

Specifications

Working area1000 × 1000 × 100 mm
Spindle500W spindle motor
Positioning accuracy0.01 mm
Max. speed1,800 mm/min
Stepper motors8825 drivers, 2.5 A
Control boardTwo Trees CNC Kit V1.3
Screen3.5" touch screen
ConnectivityUSB, Wi-Fi (2.4 GHz), TF card
File formatsNC, G-code
SoftwareFreeCAD, Carveco, ArtCAM, Easel
Operating systemWindows, macOS, Linux
MaterialsPlywood, MDF, solid wood, acrylic, carbon fibre, aluminium, copper, stainless steel (light cuts)
FrameAluminium + stainless steel
Machine size1293 × 1291 × 405 mm
Package size1395 × 415 × 320 mm (2 cartons)
Rated power150 W
Continuous operation≤ 120 hours
Gross weight45.9 kg

Geotech service

  • Assembly and setup by Geotech included in the price.
  • Sold and supported by Geotech in Tbilisi — installation, training and service in Georgia.
