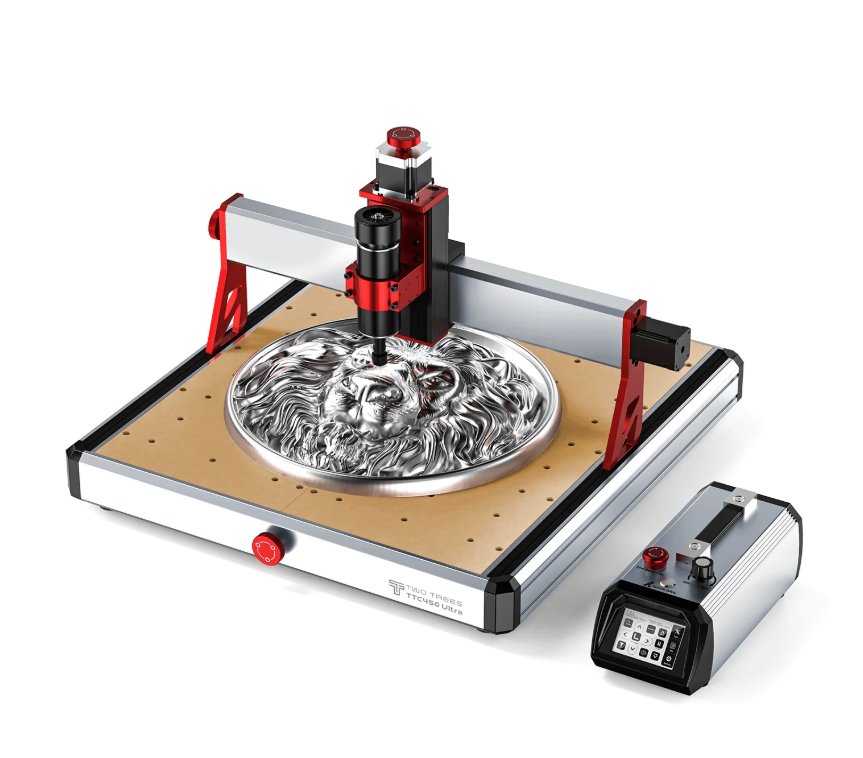

TTC450 Ultra
CNC Router Machine

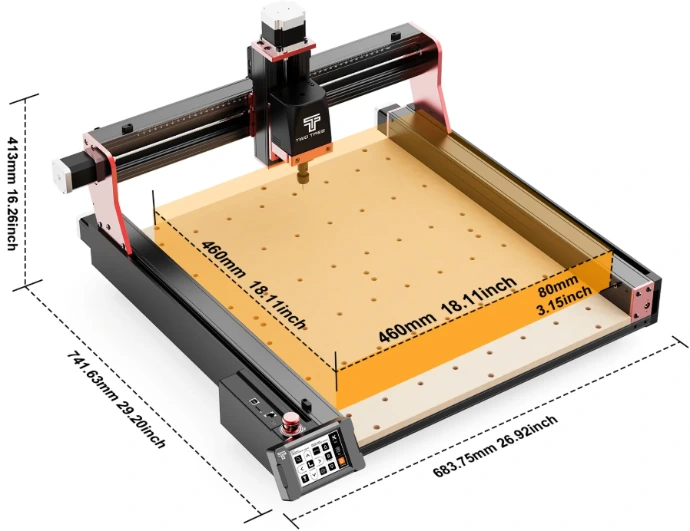

TTC450 PRO
CNC Router Machine

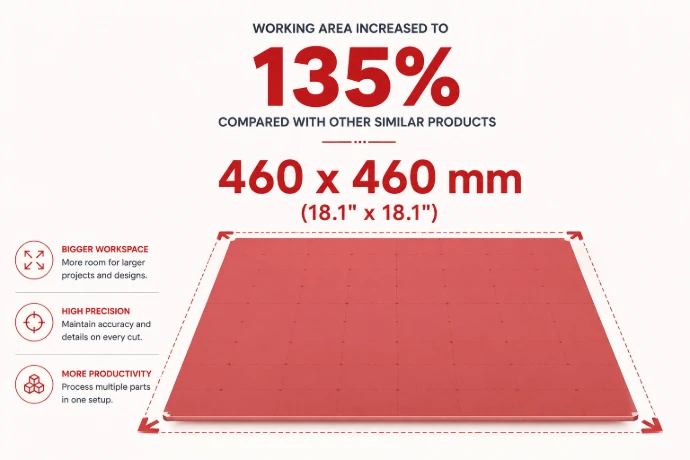

Comparison Working Area
We make every moment count with solutions designed just for you.

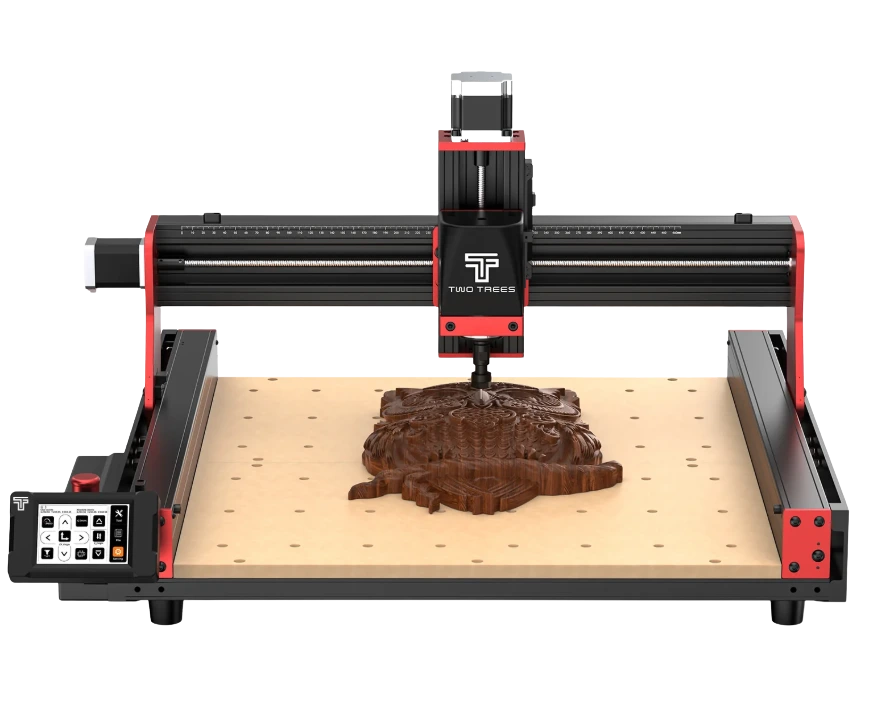

TTC450 Ultra CNC
Professional CNC Cutting, Engraving & Carving for Precision Projects
The TTC450 Ultra combines a 460 × 460 × 100 mm working area, 500W spindle motor, and high-speed CNC control to deliver precise and efficient machining for woodworking, signage, decorative panels, engraving, 2D and 3D carving, prototypes, personalized products, and small-batch production
TTC450 PRO CNC
Precision CNC Cutting, Engraving & Carving for Versatile Projects
The TTC450 Pro combines a 460 × 460 × 80 mm working area with a powerful 775 spindle motor, precise CNC control, and support for both CNC and laser engraving, making it ideal for woodworking, decorative designs, signage, engraving, 2D and 3D carving, prototypes, personalized products, and professional workshop applications.
The TTC450 Ultra provides a 460 × 460 × 100 mm working area, giving you 20 mm more Z-axis working depth than the TTC450 Pro. This makes the Ultra better suited for deeper carving and more demanding projects.
"Why would I buy the Ultra if they can make exactly the same things?"
TTC450 PRO

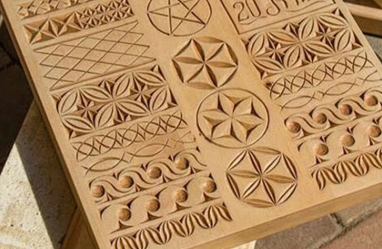

- Detailed 2D and 3D wood carving, including ornaments, reliefs, decorative patterns, and artistic designs
- Furniture components, custom panels, cabinet details, handles, and decorative elements
- Professional signs, logos, nameplates, lettering, and branding materials
- Personalized products, custom gifts, plaques, wooden artwork, and unique designs
- Woodworking projects using plywood, MDF, and solid wood
- Acrylic and plastic products for decorative and creative applications
- Precision engraving on aluminum, copper, and stainless steel, depending on tooling and material thickness
- Carbon fiber engraving for suitable custom and technical applications
- CNC and laser engraving projects with compatible upgrade modules
- Prototypes and custom parts for one-off designs and small production projects
- Interior décor, ornaments, decorative panels, and custom wooden products
- Small-batch production for workshops, makers, designers, and small businesses
TTC450 Ultra & TTC450 PRO
- Detailed 2D and 3D wood carving, including ornaments, reliefs, decorative patterns, and artistic designs
- Furniture components, custom panels, cabinet details, handles, and decorative elements
- Professional signs, logos, nameplates, lettering, and branding materials
- Personalized products, custom gifts, plaques, wooden artwork, and unique designs
- Precision engraving on aluminum, copper, and other suitable metals, depending on tooling
- CNC and laser projects for greater flexibility across different applications
- Prototypes, custom parts, one-off components, and small production runs
- Interior décor, wall panels, ornaments, and custom decorative products
- Creative, educational, and technical projects for makers, designers, and workshops
- Small-batch production with consistent and repeatable results
BUT With TTC450 ultra its 500W spindle, 100 mm working depth and high-speed operation, the TTC450 Ultra is designed for users who need more capability and performance from a compact CNC platform.

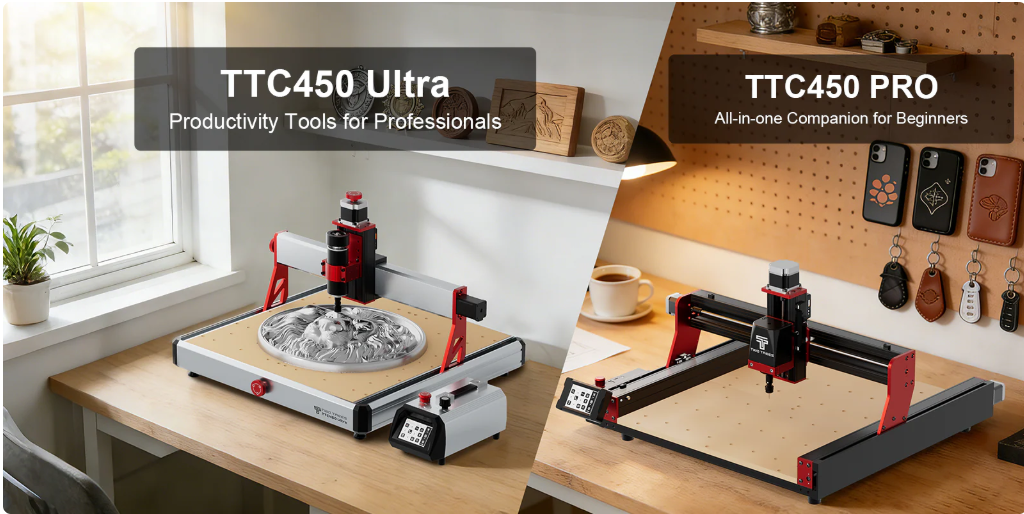

Who Is the TTC450 Ultra & TTC450 PRO Suitable For?
The TTC450 Ultra and TTC450 Pro are versatile CNC machines suitable for woodworkers, furniture makers, advertising companies, designers, workshops, makers, manufacturers, small businesses, and professionals looking to create customized products, prototypes, decorative designs, and small-batch production.
The TTC450 Pro is a practical choice for creative projects, woodworking, engraving, carving, customization, and small workshop applications, while the TTC450 Ultra is designed for users who need higher speed, greater working depth, improved precision, and more demanding CNC applications.
TTC450
Ultra
TTC450
Pro

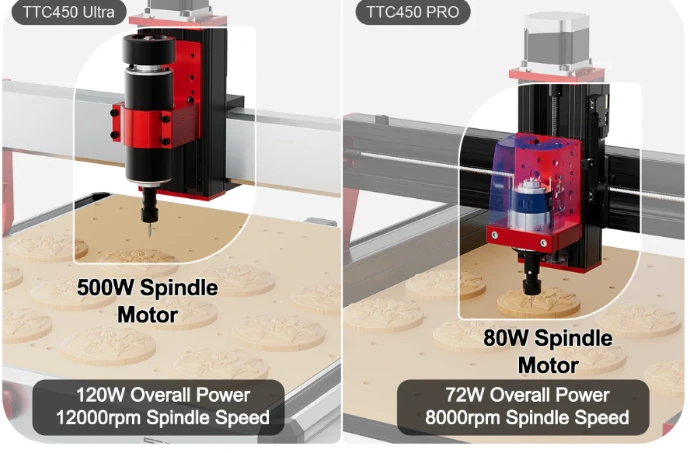

TTC450 Ultra vs. TTC450 Pro — Spindle Performance Comparison
The TTC450 Ultra and TTC450 Pro are both designed for CNC carving and engraving, but the Ultra offers a significantly more powerful spindle system for users who need higher performance and faster machining.
| Feature | TTC450 Ultra | TTC450 Pro |
|---|---|---|
| Spindle Motor | 500W | 80W |
| Overall Power | 120W | 72W |
| Spindle Speed | 12,000 RPM | 8,000 RPM |
| Performance | Higher power and faster machining | Suitable for lighter CNC projects |
| Best suited for | More demanding carving, engraving, and production work | Woodworking, engraving, carving, and creative projects |

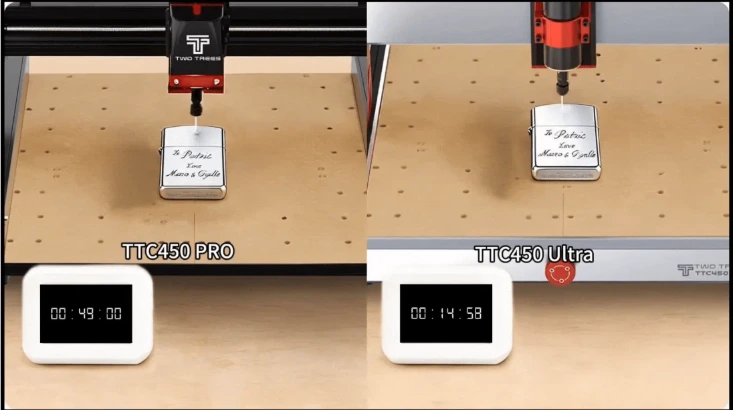

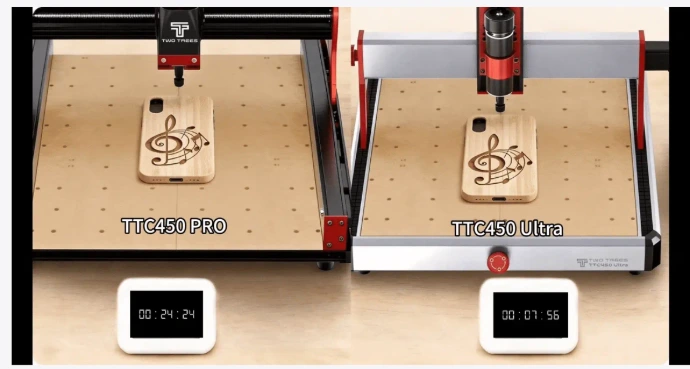

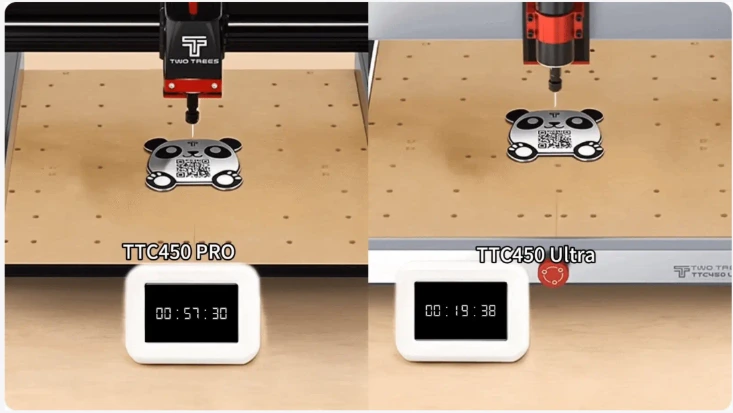

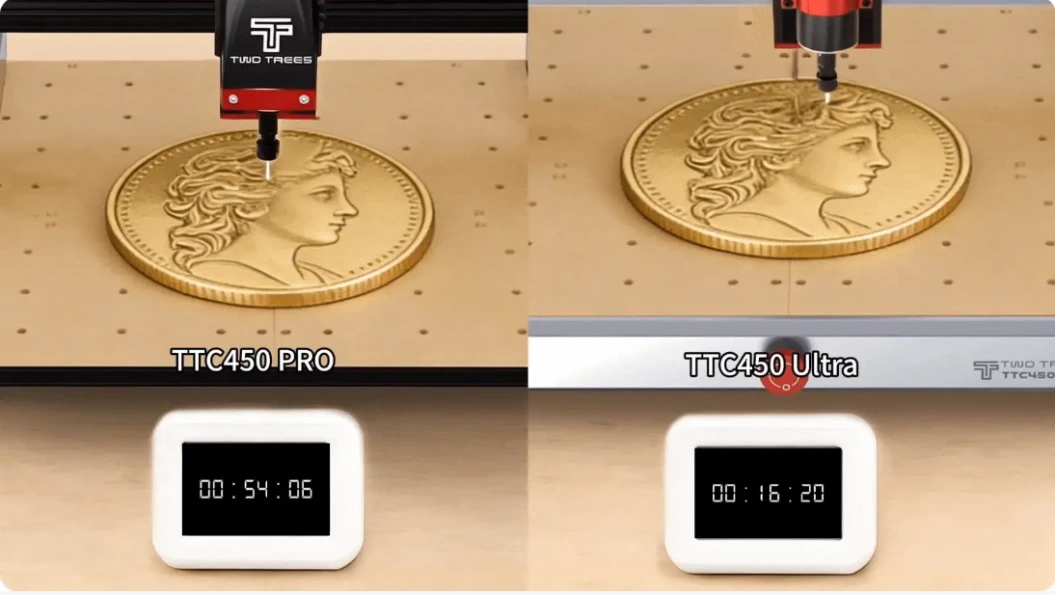

With Ultra, finish faster and produce more in the same time. With PRO, enjoy a steady, deliberate pace.
More Material & Process Comparisons at a Glance
| Material & Process | TTC450 Ultra | TTC450 Pro |
|---|---|---|
| Metal 3D Engraving | ★★★★★ High engraving performance | ★★★★☆ Good engraving performance |
| Metal Cutting | Max cutting thickness: 0.5 mm (Aluminum) | Max cutting thickness: 0.1 mm (Aluminum) |
| Wood 3D Engraving | ★★★★★ Excellent engraving quality | ★★★☆☆ Good engraving quality |
| Wood Cutting | Max cutting thickness: 40 mm (Basswood) | Max cutting thickness: 25 mm (Basswood) |
| Acrylic 3D Engraving | ✓ Supported | ✓ Supported |
| Acrylic Cutting | Max cutting thickness: 25 mm | Max cutting thickness: 15 mm |
| Glass 3D Engraving | ✓ Supported | ✓ Supported |

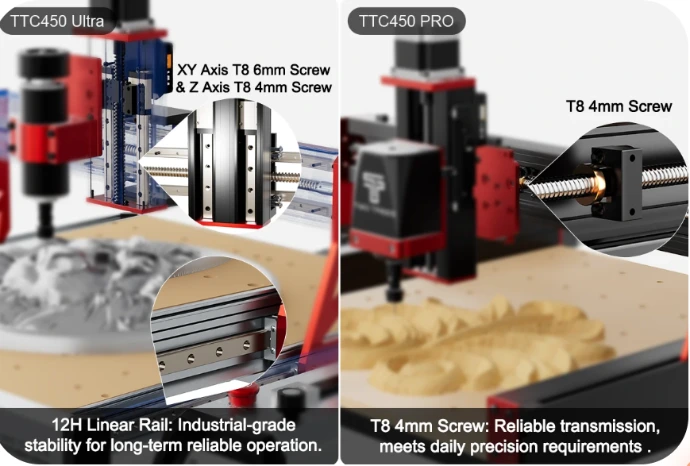

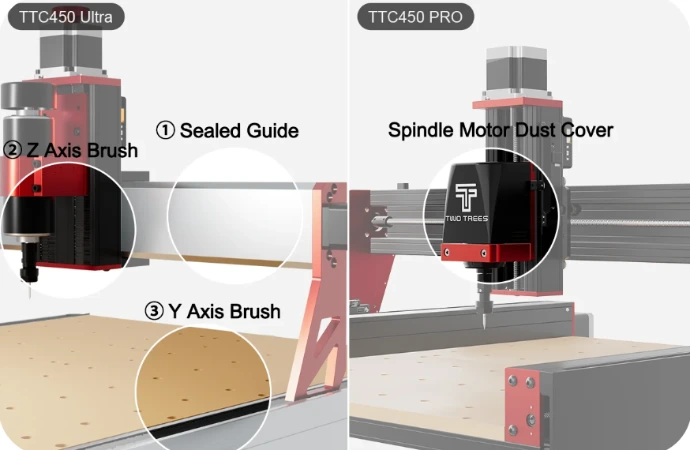

TTC450 Ultra vs. TTC450 Pro — Motion & Transmission System Comparison
The TTC450 Ultra and TTC450 Pro use different motion systems, which affects the machine's stability, precision, and suitability for demanding CNC work.
| Feature | TTC450 Ultra | TTC450 Pro |
|---|---|---|
| X/Y Axis | T8 6 mm screw | T8 4 mm screw |
| Z Axis | T8 4 mm screw | T8 4 mm screw |
| Linear System | 12H Linear Rails | Standard screw-based transmission |
| Stability | Industrial-grade stability | Reliable for daily operation |
| Best suited for | More demanding and precision-focused work | Everyday engraving, carving, and CNC projects |
Ultra: Industrial-Grade Stability,12H Linear Rail for Micron-Level Precision.
PRO: Robust construction for passionate project cycles.
TTC450 Ultra vs. TTC450 Pro — Power & Performance
| Feature | TTC450 Ultra | TTC450 Pro |
|---|---|---|
| Spindle Motor | 500W | 775 Brushed Motor |
| Overall Power | 120W | 72W |
| Maximum Engraving Speed | 3000 mm/min | 800 mm/min |
| Spindle Speed | Up to 12,000 RPM* | Up to 8,000 RPM* |
| Wood Cutting | Up to 40 mm* | Up to 25 mm* |
| Acrylic Cutting | Up to 25 mm* | Up to 15 mm* |
| Aluminum Cutting | Up to 0.5 mm* | Up to 0.1 mm* |
TTC450 Ultra vs TTC450 Pro vs TTC6050 — Product Specifications
| Specification | TTC450 Ultra | TTC450 Pro | TTC6050 |
|---|---|---|---|
| Main Body Material | Aluminum + Stainless Steel + Injection Molding | Aluminum + Stainless Steel | Aluminum + Plastic Parts + C7 Ball Screw + Linear Guide Rail |
| Net Weight | 19 kg | 15.45 kg | 35.9 kg |
| Gross Weight | — | 20.6 kg | 39 kg |
| Control Box Dimensions | 300 × 137 × 131 mm | — | 300 × 137 × 131 mm |
| Machine Dimensions | 745 × 660 × 473 mm | 742 × 689 × 413 mm | 811 × 769 × 530 mm |
| Working Range | 460 × 460 × 100 mm | 460 × 460 × 80 mm | 600 × 500 × 100 mm |
| Supported Tool Diameter | 0.5–7 mm (ER11 Collet) | 0.5–6 mm (ER11 Collet) | 0.5–7 mm (ER11 Collet) |
| Compatible Materials | Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel | Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel | Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel |
| Packaging Dimensions | 685 × 610 × 190 mm | 760 × 740 × 218 mm | 845 × 491 × 342 mm |
| Power Supply | 216W Dual-Channel Switching Power Supply | 24V 3A Power Adapter | 216W Dual-Channel Switching Power Supply |
| Input Voltage | 24V Control Board | 100–240V AC, 50/60Hz | 100–240V AC |
| Output Voltage | — | DC 24V / 3A | DC 24V / 4A + DC 0–100V / 100W |
| Overall / Power Consumption | 80W Maximum Power Consumption | 72W Overall Power | 150W Total Power Consumption* |
| Standby Power | 12.6W | — | 15W |
| Touch Screen | 3.5-inch IPS Capacitive Touch, 480 × 320 | 3.5-inch IPS Capacitive Touch, 480 × 320 | 3.5-inch Touch Screen, 480 × 320 |
| Firmware | GRBL Open Source; CNC & Laser Support | GRBL Open Source; CNC & Laser Support | GRBL Open Source; CNC & Laser Support |
| Motion Structure | XYZ | XYZ | XYZ |
| Motion System | T8 screw + linear rail system | T8 4 mm screw | C7 Ball Screws + Linear Guide Rails |
| X/Y Positioning Accuracy | 0.01 mm | — | — |
| Z-Axis Positioning Accuracy | 0.025 mm | — | — |
| Engraving Accuracy | 100 ± 0.05 mm | 100 ± 0.05 mm | — |
| Maximum Engraving Speed | 3000 mm/min | 800 mm/min | 5000 mm/min |
| Maximum Acceleration | 500 mm/s² | 1000 mm/s² | 500 mm/s² |
| Spindle Motor | 500W Standard Spindle | 775 Brushed Motor | 500W Standard Spindle |
| Spindle Speed | 8,000–30,000 RPM, depending on installation | 8,000–30,000 RPM, depending on installation | Up to 12,000 RPM |
| Tool Size | 0.5–7 mm | 0.5–6 mm | 0.5–7 mm |
| Engraving Layer Height | 0.1–20 mm non-metals; 0.1–0.2 mm metals | 0.1–20 mm non-metals; 0.1–0.2 mm metals | 0.1–20 mm non-metals; 0.1–0.2 mm metals |
| Programming Software | VCarve, Fusion 360, EASEL, Carveco Maker, FlatCAM, CamLab, MillMage, Carbide3D, Vectric software | VCarve, Fusion 360, EASEL, Carveco Maker, etc. | VCarve, Fusion 360, EASEL, Carveco Maker |
| Supported Operating Systems | macOS, Windows, Linux | macOS, Windows, Linux | macOS, Windows, Linux |
| Software Languages | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish |
| Supported File Formats | .NC and .G-code | .NC and .G-code | .NC and .G-code |
| Safety Features | — | — | Infrared sensor + limit protection |
| Control Box | ✓ | — | ✓ |
| Laser Compatible | ✓ | ✓ | ✓ |
| Safety Certifications | CE-EMC, CE-LVD, CE-MD, CE-RED, RoHS, FCC-SDoC, FCC-ID | CE-EMC, CE-LVD, CE-MD, CE-RED, RoHS, FCC-SDoC, FCC-ID | CE-EMC, CE-LVD, CE-MD, CE-RED, RoHS, FCC-SDoC, FCC-ID |
| Optimal Engraving Temperature | 0°C–40°C | 0°C–40°C | 0°C–40°C |
Why to choose us for TTC450 ULTRA & PRO DRM?
- Seamless Setup & Installation
We fully assemble and configure your Desktop TTC450 CNC Router Machine for you. No technical stress, no mistakes—your machine is ready for operation from day one.
- Software Installation & Calibration
- Our team installs all required software and performs precise calibration so your machine delivers accurate and consistent results from day one.
- Comprehensive Professional Training
- We provide in-depth, personalized training so you and your team can master every function of the machine with complete confidence and precision.
- Dedicated Technical Support — Anytime, Anywhere
- Our expert engineers are always available for both online and on-site assistance, guaranteeing uninterrupted productivity and peace of mind.
- Fast Technical Support for Breakdowns or Errors
- Our support team responds quickly to diagnose and resolve any errors or malfunctions, minimizing downtime and keeping your workflow smooth.
- Exclusive 1-Year Local Guarantee
Enjoy the security of a full one-year local warranty backed by our commitment to excellence and customer satisfaction.
- 24/7 Dedicated Support
- Whether you prefer online troubleshooting or on-site assistance, our technical team is always available to help you resolve issues quickly and efficiently.
