GT-C ATC · Automatic tool change

ATC CNC routers: the machine changes the tools, you keep producing

Automatic tool change with 4 or 8 tools, from compact 600 × 900 mm machines to 2000 × 3000 mm production lines. For furniture and cabinet production, nesting, 3D work and aluminium.

Request a quoteCall us
  • 18-month warranty
  • Built to order in 8–12 weeks
  • Free installation and training in Tbilisi
  • Configured to your job
GT-C ATC Pro9 kW · 8 tools · Syntec
GT-C1325ATC Pro CNC router with automatic tool change

Choose your ATC router

Compact ATC machines run on 220 V. Full-sheet ATC machines need 380 V three-phase power.

Compact ATC · 220 V

Entry ATC

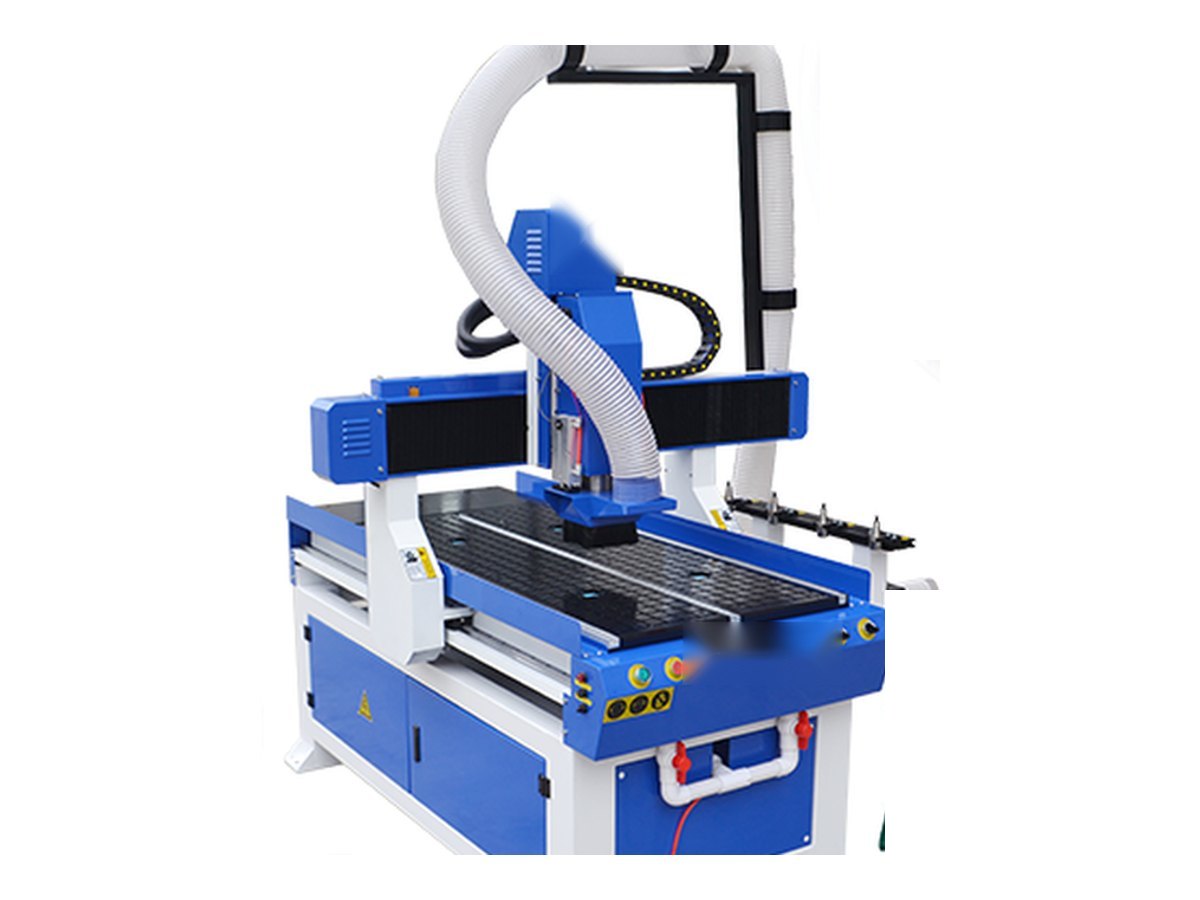

GT-C ATC compact CNC router

GT-C ATC

Four tools change automatically. Vacuum table and dust collector included — a complete small production cell.

Tool changer4 tools, linear magazine
Spindle2.2 kW ATC, water-cooled
Table typeVacuum table, 2.2 kW pump
Power supply220 V, single-phase

Choose the size

GT-C6090ATC

  • Travel X × Y × Z600 × 900 × 180 mm
  • Table size600 × 1250 mm
  • Machine size1400 × 1350 × 1540 mm
  • Weight net / gross300 / 350 kg

GT-C6012ATC

  • Travel X × Y × Z600 × 1200 × 180 mm
  • Table size600 × 1550 mm
  • Machine size1670 × 1350 × 1540 mm
  • Weight net / gross350 / 400 kg

GT-C6015ATC

  • Travel X × Y × Z600 × 1500 × 180 mm
  • Table size600 × 1850 mm
  • Machine size1970 × 1350 × 1540 mm
  • Weight net / gross400 / 450 kg

GT-C1212ATC

  • Travel X × Y × Z1200 × 1200 × 180 mm
  • Table size1300 × 1250 mm
  • Machine size1690 × 2090 × 1540 mm
  • Weight net / gross500 / 550 kg

GT-C1215ATC

  • Travel X × Y × Z1200 × 1500 × 180 mm
  • Table size1300 × 1520 mm
  • Machine size1720 × 2090 × 1540 mm
  • Weight net / gross600 / 750 kg

GT-C1218ATC

  • Travel X × Y × Z1200 × 1800 × 180 mm
  • Table size1300 × 2150 mm
  • Machine size2020 × 2090 × 1540 mm
  • Weight net / gross700 / 850 kg
Request a quote
Full specifications
  • Tool changer4 tool holders, linear magazine on the side
  • Spindle2.2 kW ATC spindle, water-cooled, 0–24 000 rpm
  • ControllerPC control (6090–6015) / MDR controller (1212–1218), Ethernet
  • MotorsHybrid servo (easy servo)
  • Guide railsLinear rails
  • TransmissionBall screws
  • Table typeVacuum table, 2.2 kW pump
  • Dust collectionBag dust collector, auto up-down boot
  • Material height200 mm
  • Max travel speed8 m/min
  • Precision0.05 mm
  • Power supply220 V, single-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG
Industrial control

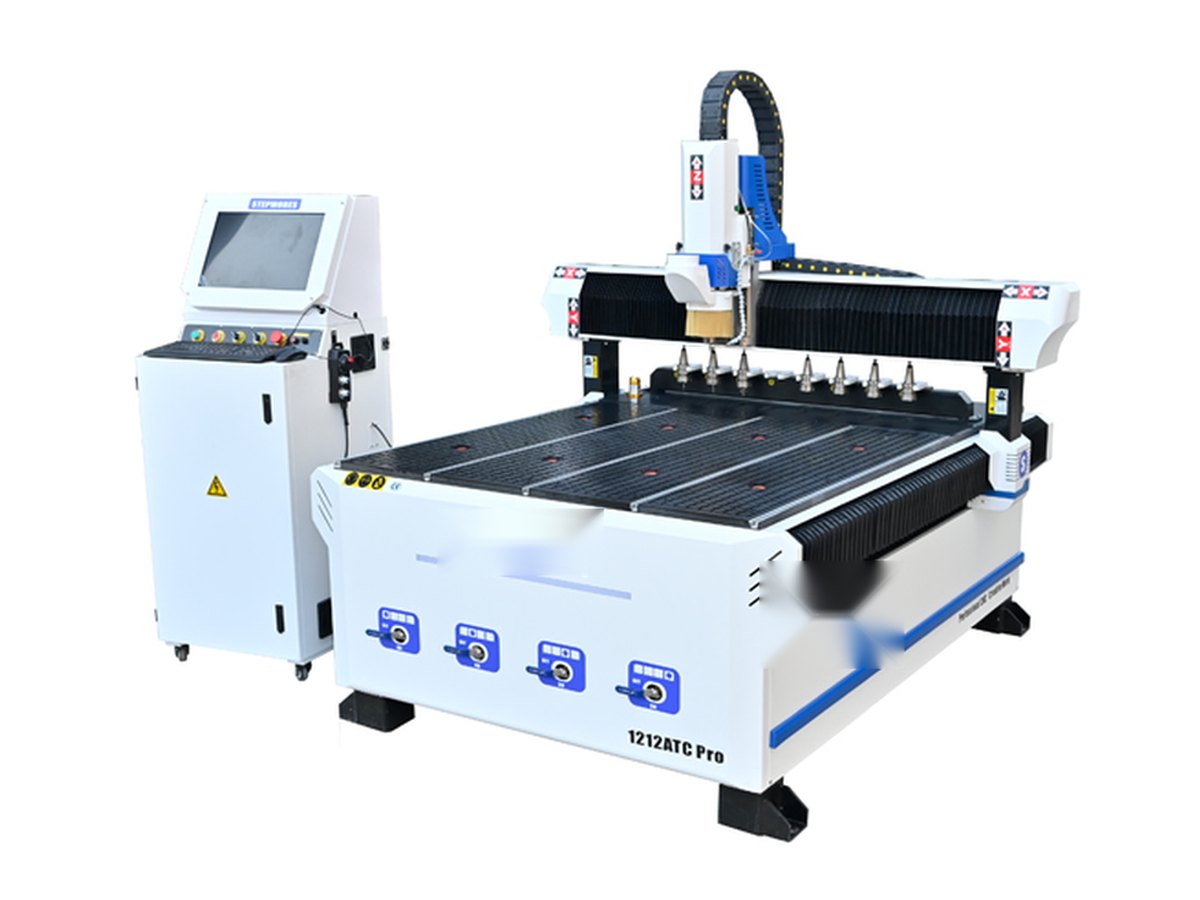

GT-C1212ATC Pro CNC router

GT-C1212ATC Pro

Eight tools, 4.5 kW spindle, Syntec controller and absolute servo motors in a 1200 × 1200 mm footprint.

Tool changer8 tools, linear magazine
Spindle4.5 kW ATC, water-cooled
ControllerSyntec industrial controller
Power supply220 V, single-phase

GT-C1212ATC Pro

  • Travel X × Y × Z1200 × 1200 × 250 mm
  • Table size1300 × 1730 mm
  • Machine size2130 × 1870 × 1770 mm
  • Weight net / gross700 / 850 kg
Request a quote
Full specifications
  • Tool changer8 tool holders, linear magazine at the back
  • Spindle4.5 kW ATC spindle, water-cooled, 0–24 000 rpm
  • ControllerSyntec 60CB industrial controller
  • MotorsAbsolute servo motors
  • Guide railsLinear rails
  • TransmissionBall screws
  • Table typeVacuum table, 5.5 kW pump
  • Dust collectionBag dust collector, auto up-down boot
  • Material height200 mm, Z travel 250 mm
  • Max travel speed8 m/min
  • Precision0.05 mm
  • Power supply220 V, single-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG
Aluminium & brass
GT-C6090ATC-M CNC router for metal

GT-C6090ATC-M for metal

A rigid 600 × 900 mm machine with automatic tool cooling for aluminium, brass, copper and engineering plastics.

Tool changer8 tools, linear magazine
Spindle4.5 kW ATC, water-cooled
MotorsAbsolute servo motors
Power supply220 V, single-phase

GT-C6090ATC-M

  • Travel X × Y × Z600 × 900 × 250 mm
  • Table size600 × 900 mm
  • Machine size1380 × 1320 × 1420 mm
  • Weight net / gross450 / 500 kg
Request a quote
Full specifications
  • Tool changer8 tool holders, linear magazine at the back
  • Spindle4.5 kW ATC spindle, water-cooled, 0–24 000 rpm
  • ControllerSyntec industrial controller
  • MotorsAbsolute servo motors
  • Guide railsLinear rails
  • TransmissionBall screws
  • Table typeVacuum table for metal work
  • Tool coolingAutomatic
  • Material height200 mm, Z travel 250 mm
  • Max travel speed8 m/min
  • Precision0.05 mm
  • Power supply220 V, single-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG

Full-sheet ATC · 380 V

Furniture production

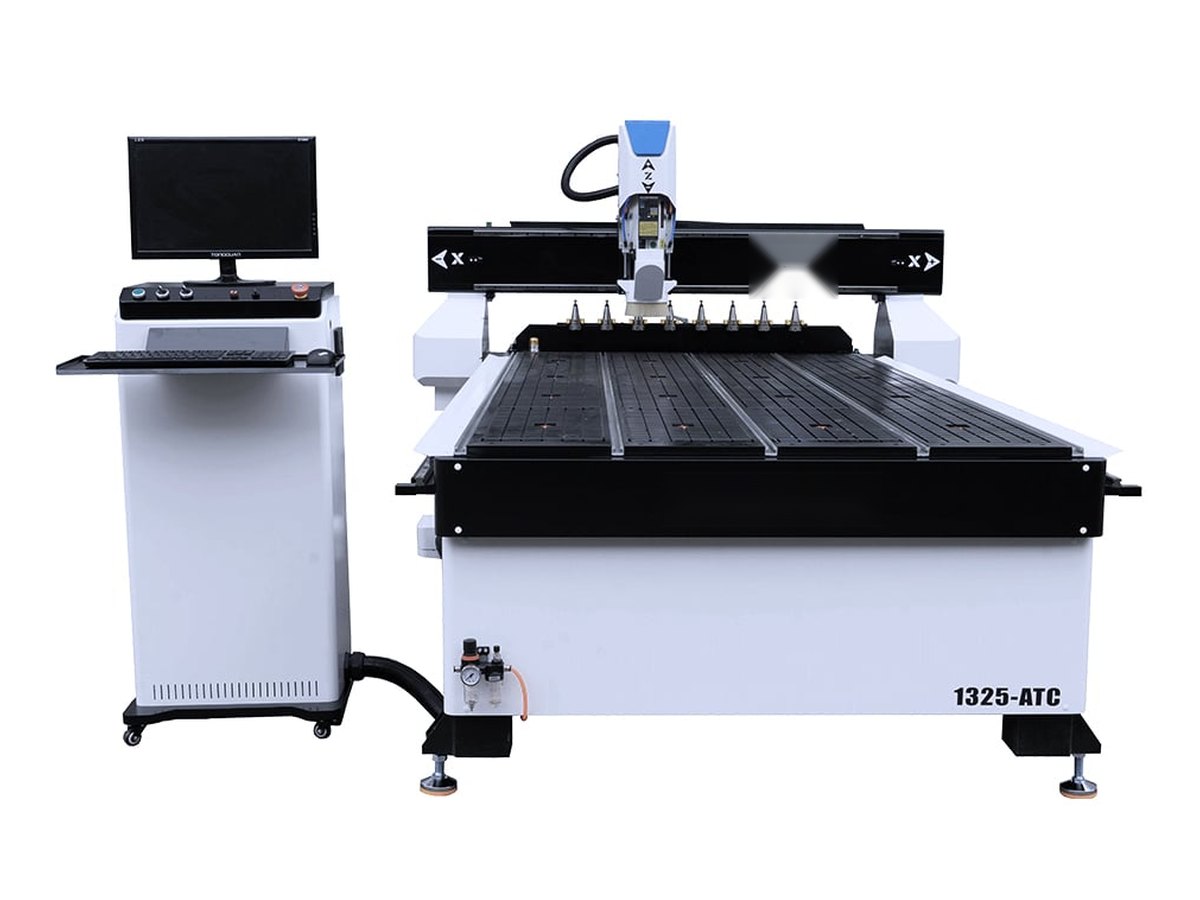

GT-C1325ATC CNC router

GT-C ATC (1325 / 1530 / 2030)

9 kW spindle, 8 tools and a multi-zone vacuum table: cut, drill and groove cabinet parts from full sheets in one run.

Tool changer8 tools, linear magazine
Spindle9 kW ATC, air-cooled
Table typeVacuum + T-slot, 5.5 kW pump
Power supply380 V, three-phase

Choose the size

GT-C1325ATC

  • Travel X × Y × Z1300 × 2500 × 200 mm
  • Machine size3250 × 2000 × 1620 mm
  • Weight net / gross1400 / 1600 kg

GT-C1530ATC

  • Travel X × Y × Z1500 × 3000 × 200 mm
  • Machine size3500 × 2140 × 1620 mm
  • Weight net / gross1700 / 2000 kg

GT-C2030ATC

  • Travel X × Y × Z2000 × 3000 × 200 mm
  • Machine size3500 × 2800 × 1620 mm
  • Weight net / gross1900 / 2200 kg
Request a quote
Full specifications
  • Tool changer8 tool holders, linear magazine at the back
  • Spindle9 kW ATC spindle, air-cooled
  • ControllerPC control (MDR), Ethernet
  • MotorsServo motors with precision reducers
  • Guide railsLinear rails 20 mm
  • TransmissionHelical rack X/Y, ball screw Z
  • Table typeMulti-zone vacuum + T-slot, 5.5 kW pump
  • Dust collectionBag dust collector, auto up-down boot
  • LubricationCentral lubrication
  • Max travel speed50 m/min
  • Precision0.05 mm
  • Power supply380 V, three-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG
Top configuration

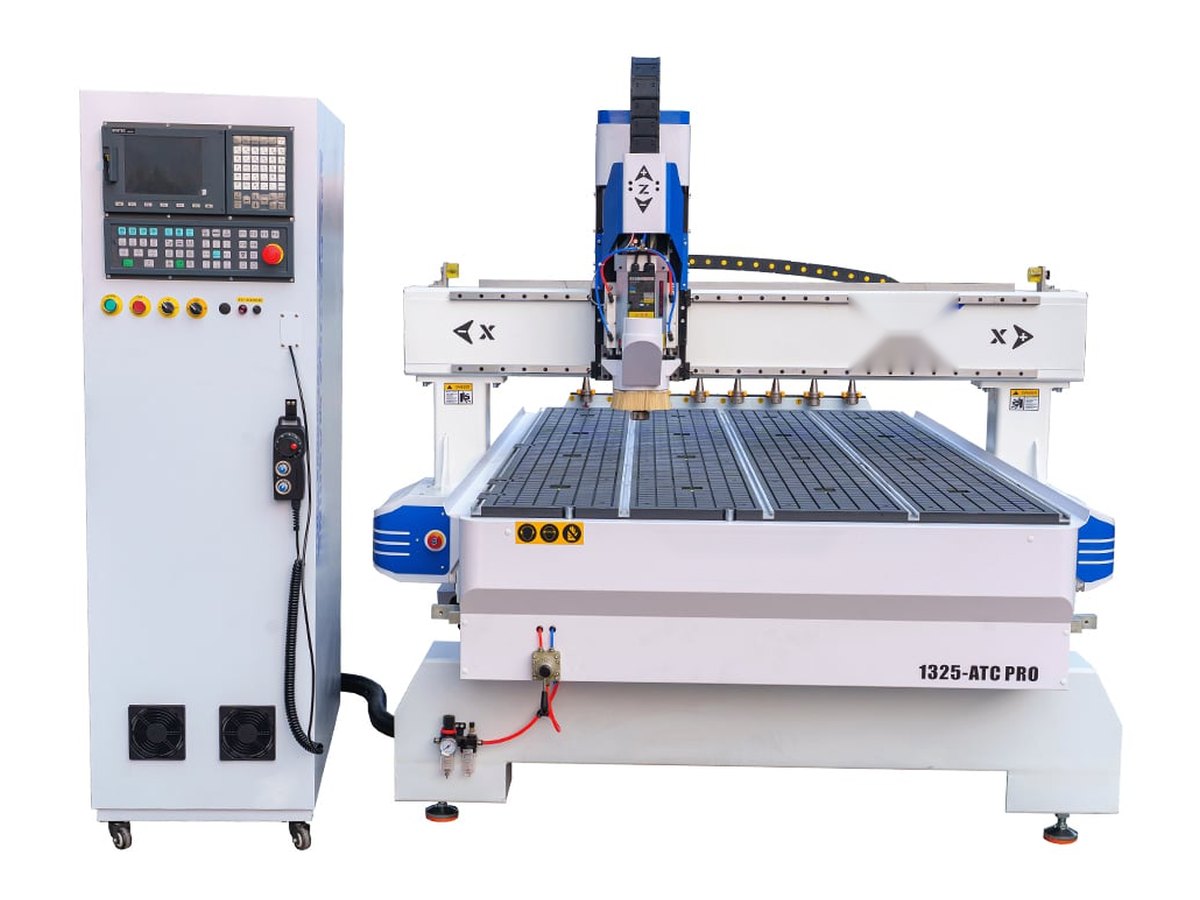

GT-C1325ATC Pro CNC router

GT-C ATC Pro (1325 / 1530 / 2030)

The same production machine with a Syntec industrial controller and heavier 25 mm rails for shift work.

Tool changer8 tools, linear magazine
Spindle9 kW ATC, air-cooled
Table typeVacuum + T-slot, 5.5 kW pump
Power supply380 V, three-phase

Choose the size

GT-C1325ATC Pro

  • Travel X × Y × Z1300 × 2500 × 200 mm
  • Machine size3250 × 2000 × 1620 mm
  • Weight net / gross1500 / 1600 kg

GT-C1530ATC Pro

  • Travel X × Y × Z1500 × 3000 × 200 mm
  • Machine size3500 × 2140 × 1620 mm
  • Weight net / gross1700 / 2000 kg

GT-C2030ATC Pro

  • Travel X × Y × Z2000 × 3000 × 200 mm
  • Machine size3500 × 2800 × 1620 mm
  • Weight net / gross1900 / 2200 kg
Request a quote
Full specifications
  • Tool changer8 tool holders, linear magazine at the back
  • Spindle9 kW ATC spindle, air-cooled
  • ControllerSyntec industrial controller
  • MotorsServo motors with precision reducers
  • Guide railsLinear rails 25 mm
  • TransmissionHelical rack X/Y, ball screw Z
  • Table typeMulti-zone vacuum + T-slot, 5.5 kW pump
  • Dust collectionBag dust collector, auto up-down boot
  • LubricationCentral lubrication
  • Max travel speed50 m/min
  • Precision0.05 mm
  • Power supply380 V, three-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG
750 mm high

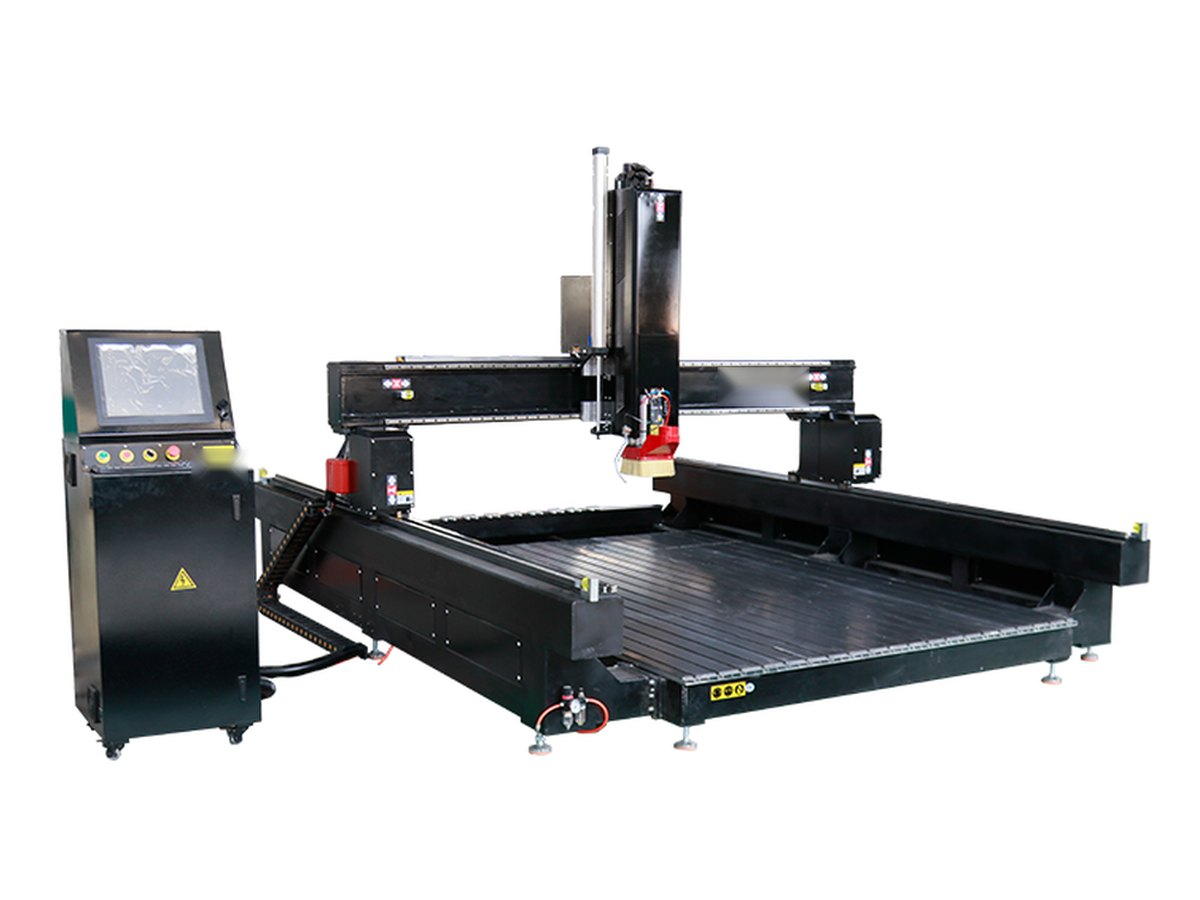

GT-C2030ATC-Z750 CNC router

GT-C2030ATC-Z750

ATC with 750 mm under the gantry: 3D carving, moulds, foam and thick timber on a 2000 × 3000 mm table.

Tool changer8 tools, linear magazine
Spindle9 kW ATC, air-cooled
Material height750 mm
Power supply380 V, three-phase

GT-C2030ATC-Z750

  • Travel X × Y × Z2000 × 3000 × 850 mm
  • Machine size3700 × 2800 × 2520 mm
  • Weight net / gross1900 / 2200 kg
Request a quote
Full specifications
  • Tool changer8 tool holders, linear magazine at the back
  • Spindle9 kW ATC spindle, air-cooled
  • Material height750 mm material height, Z travel 850 mm
  • ControllerPC control, Ethernet
  • MotorsServo motors
  • Guide railsLinear rails 20 mm
  • TransmissionHelical rack X/Y, ball screw Z
  • Table typeAluminium T-slot table
  • Max travel speed30 m/min
  • Precision0.05 mm
  • Power supply380 V, three-phase
  • SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG

Why order through Geotech

One local partner from the first question to a running machine in your workshop.

01

Built to your specification

Every machine is made to order. Choose the size, spindle or laser power, controller and options — we confirm the exact build in writing before production starts.

02

18-month warranty, local service

Warranty, spare parts and technical support come from our team in Tbilisi — not from an overseas e-mail address.

03

Installation and training included

In Tbilisi we deliver, install and train your operator free of charge. Outside Tbilisi we do the same; only the travel cost is added.

04

Door-to-door in 8–12 weeks

Production, shipping and customs clearance are handled by us. You get one quote and one delivery date.

Request a quote for your configuration

Choose the model and options and tell us what you will make. We reply with the price, delivery time and the exact configuration.

Send request

What you get in the quote

  • Price delivered to your workshop, customs included
  • Exact configuration: controller, motors, spindle or laser source
  • Power supply you need: 220 V or 380 V
  • Delivery date and installation plan
+995 595 90 60 99

Frequently asked questions

What power supply do I need?

Compact routers (60, 90 and 12 series, compact ATC) run on 220 V single-phase. Full-sheet machines (1325, 1530, 2030) need 380 V three-phase. Tell us what you have in your workshop and we will confirm before you order.

How long does delivery take?

Every machine is built to order. Production and shipping to Georgia take 8–12 weeks from the confirmed order. We give you the exact date in the quote.

Are installation and training included?

Yes. In Tbilisi we deliver the machine, install it and train your operator free of charge. Outside Tbilisi we do the same; only the travel cost is added to the quote.

What warranty do I get?

18 months on the machine. Service, spare parts and technical support are provided by Geotech in Tbilisi.

Can I change the configuration?

Yes. Controller, motors, spindle or laser source, table type and options can be changed. Write what you need in the form and we will quote exactly that build.

Which software do the routers use?

The routers read standard G-code. You can prepare jobs in Type3, ArtCAM, Aspire, Fusion 360, Mastercam, UG and similar CAM programs. During training we show the full workflow from drawing to cutting.

Why order through Geotech instead of importing myself?

Our price includes delivery to your workshop, customs clearance, installation, training and an 18-month warranty with local service. When you import yourself you pay shipping, customs and installation separately — and support is overseas.

Not sure which machine fits?

Tell us the material, thickness and sheet size. We will recommend a configuration and send a quote.
