GT-C · Large-format CNC routers · 380 V

Full-sheet CNC routers: 1300 × 2500, 1500 × 3000 and 2000 × 3000 mm

Cut whole sheets of MDF, plywood, chipboard, acrylic, composite panels and aluminium. Choose a Light model to start, a Strong model with servo and vacuum for daily production, or 2–4 heads to change tools without stopping.

Request a quote WhatsApp Call us

18-month warranty
Built to order in 8–12 weeks
Free installation and training in Tbilisi
Configured to your job

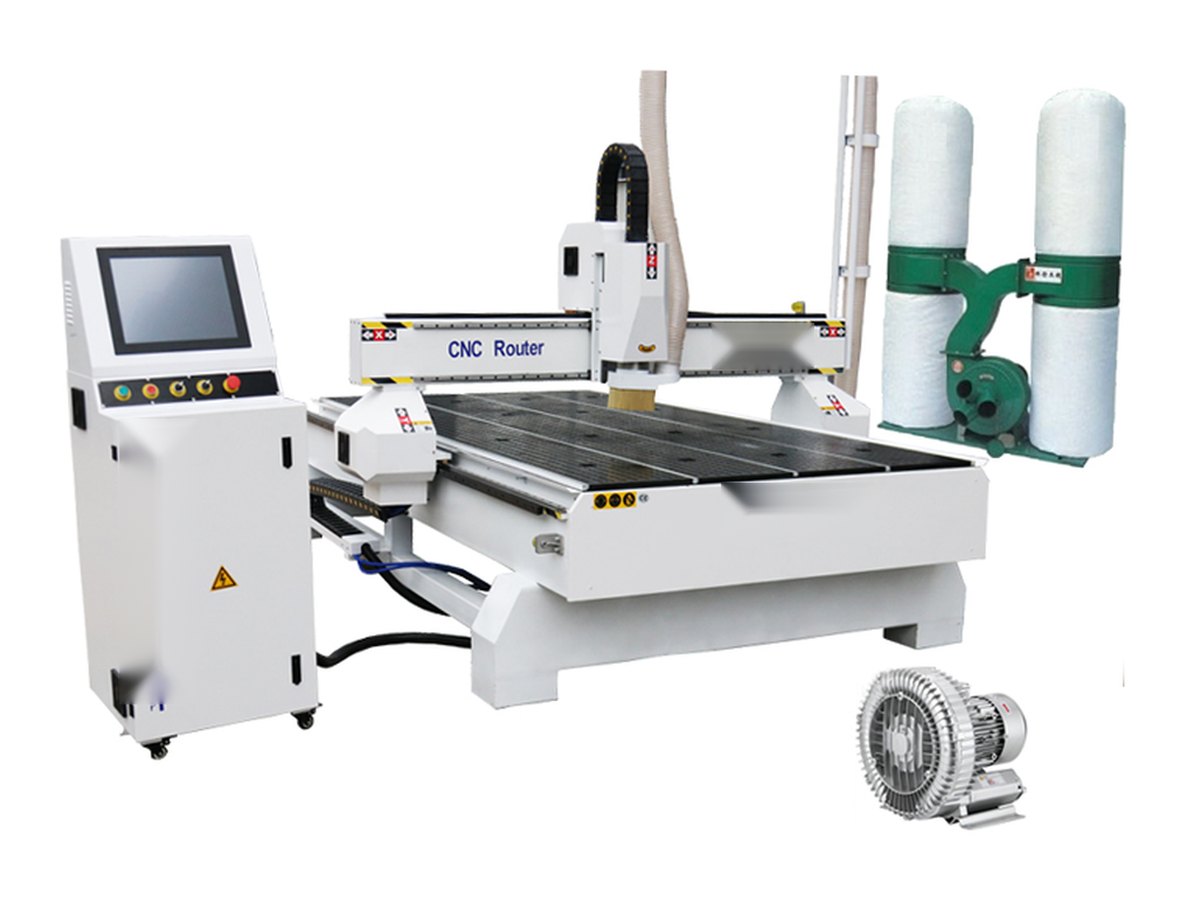

GT-C1325SServo · vacuum table 5.5 kW

Choose your large-format router

All models come in 1325, 1530 and 2030 sizes and need 380 V three-phase power. Automatic tool change models are on a separate page.

One spindle

Best value

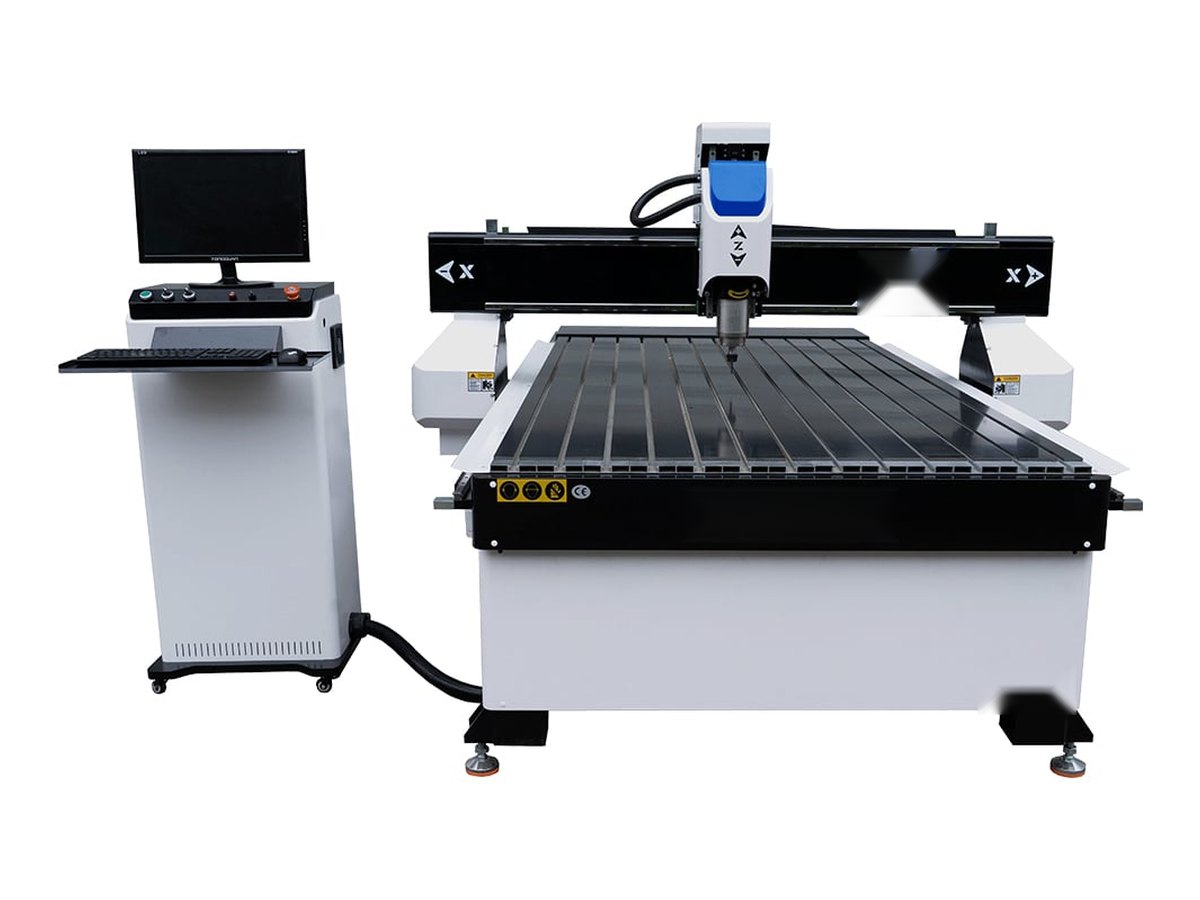

GT-C Light

The affordable way to cut full sheets. Stepper motors, T-slot table and a dust collector included.

Spindle3 kW water-cooled, 24 000 rpm

MotorsStepper motors

Table typeAluminium T-slot table

Power supply380 V, three-phase

Choose the size

132515302030

GT-C1325L

Travel X × Y × Z1300 × 2500 × 200 mm
Table size1300 × 2500 mm
Machine size3000 × 1900 × 1620 mm
Weight net / gross1000 / 1200 kg

GT-C1530L

Travel X × Y × Z1500 × 3000 × 200 mm
Table size1500 × 3000 mm
Machine size3500 × 2140 × 1620 mm
Weight net / gross1300 / 1500 kg

GT-C2030L

Travel X × Y × Z2000 × 3000 × 200 mm
Table size2000 × 3000 mm
Machine size3500 × 2800 × 1620 mm
Weight net / gross1500 / 1700 kg

Request a quote WhatsApp WhatsApp WhatsApp

Full specifications

Spindle3 kW water-cooled, 0–24 000 rpm, inverter
ControllerPC control (NCWORKS), Ethernet
MotorsStepper motors
Guide railsLinear rails 20 mm
TransmissionHelical rack X/Y, ball screw Z
Table typeAluminium T-slot table
Dust collectionDust collector included
Material height200 mm
Max travel speed20 m/min
Precision0.05 mm
Power supply380 V, three-phase
SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG

For production

GT-C Strong

Servo motors, 4.5 kW spindle and a 5.5 kW vacuum table: twice the speed of the Light model and sheets held flat without clamps.

Spindle4.5 kW air-cooled, 18 000 rpm

MotorsServo motors

Table typeVacuum + T-slot, 5.5 kW pump

Power supply380 V, three-phase

Choose the size

132515302030

GT-C1325S

Travel X × Y × Z1300 × 2500 × 200 mm
Table size1300 × 2500 mm
Machine size3000 × 1900 × 1620 mm
Weight net / gross1300 / 1500 kg

GT-C1530S

Travel X × Y × Z1500 × 3000 × 200 mm
Table size1500 × 3000 mm
Machine size3500 × 2140 × 1620 mm
Weight net / gross1600 / 1900 kg

GT-C2030S

Travel X × Y × Z2000 × 3000 × 200 mm
Table size2000 × 3000 mm
Machine size3500 × 2800 × 1620 mm
Weight net / gross1800 / 2100 kg

Request a quote WhatsApp WhatsApp WhatsApp

Full specifications

Spindle4.5 kW air-cooled, 0–18 000 rpm, inverter
ControllerPC control (NCWORKS), other controllers on request
MotorsServo motors with precision reducers
Guide railsLinear rails 20 mm
TransmissionHelical rack X/Y, ball screw Z
Table typeVacuum + T-slot, 5.5 kW pump
Dust collectionDust collector included
Material height200 mm
Max travel speed40 m/min
Precision0.05 mm
Power supply380 V, three-phase
SoftwareType3, ArtCAM, Aspire, Fusion 360, Mastercam, UG

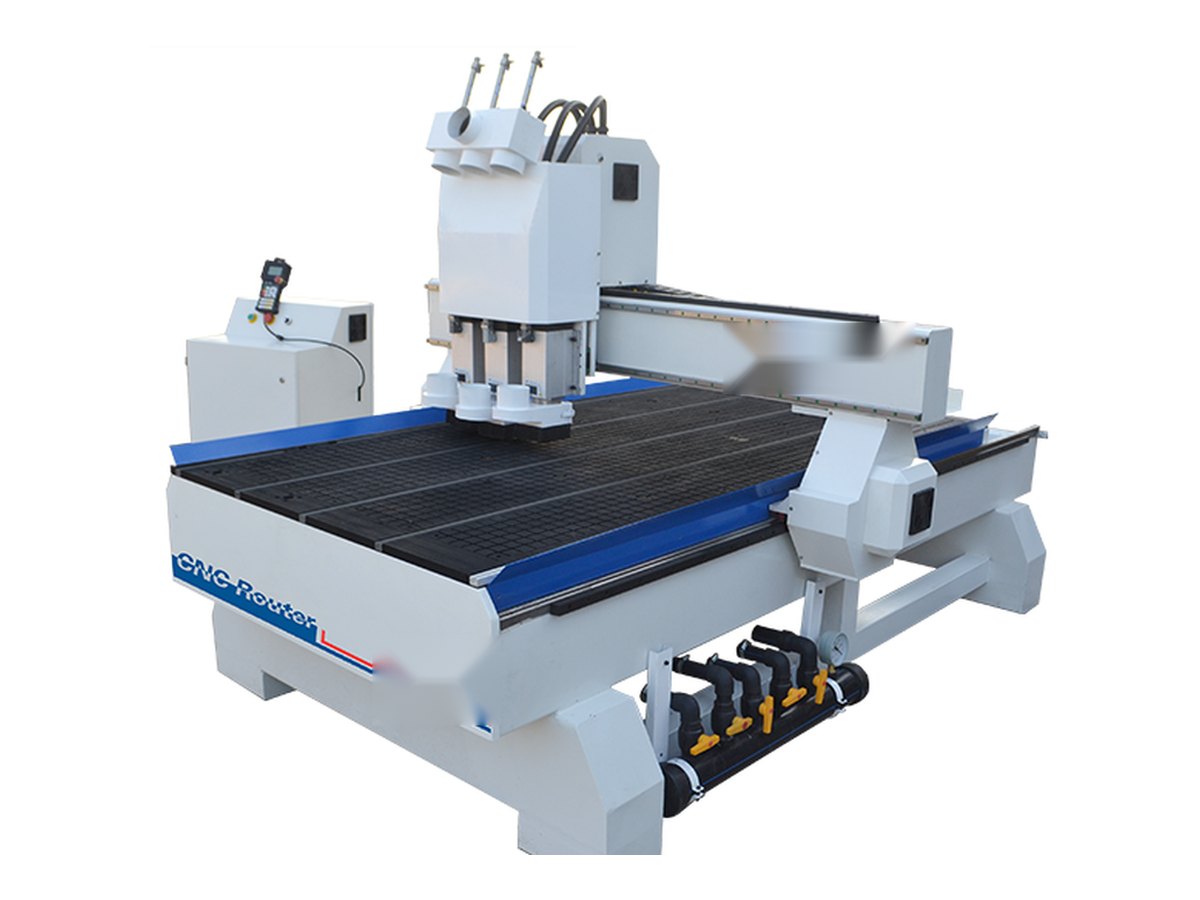

Several heads

Compare the large-format models

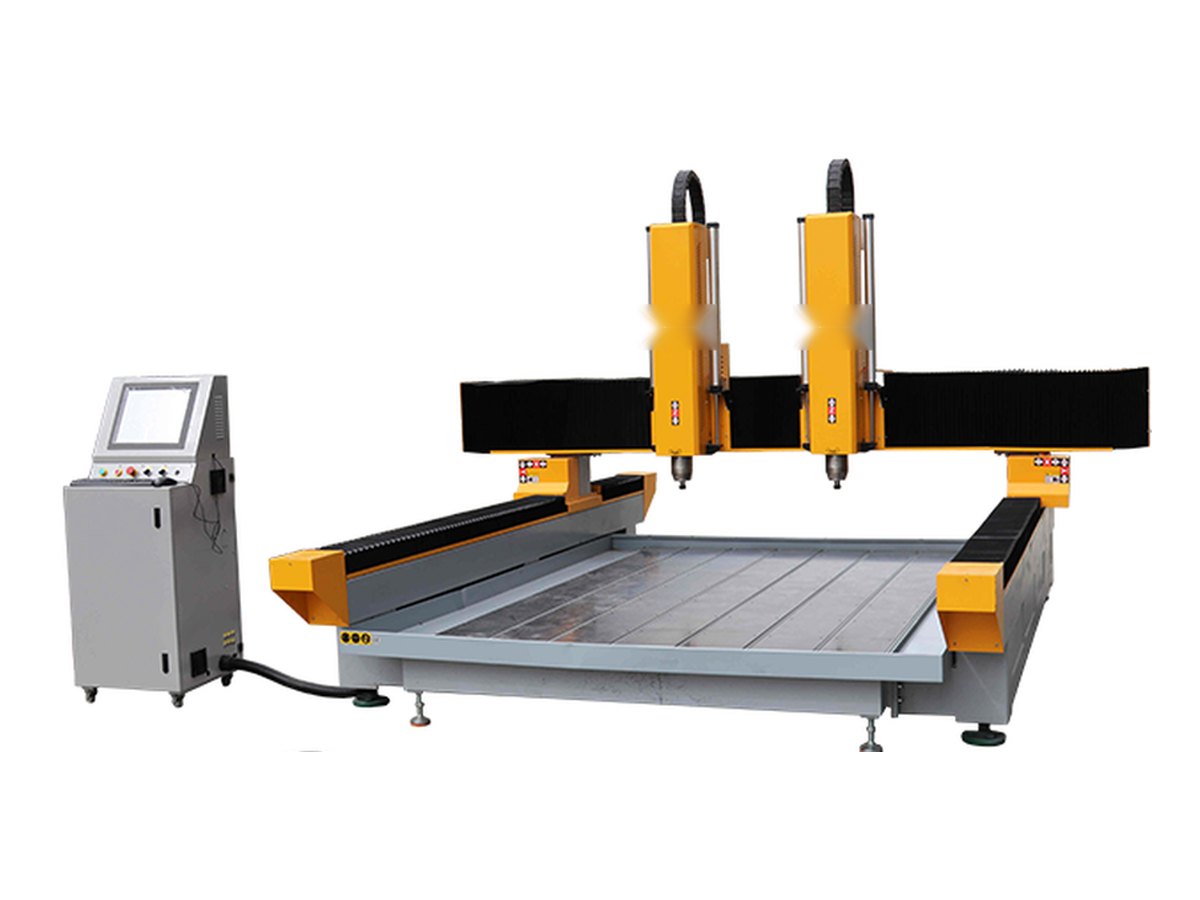

	Light	Strong	Strong T2–T4	2030D-Z750
Spindle	3 kW	4.5 kW	2–4 × 4.5 kW	2 × 5.5 kW
Motors	Stepper motors	Servo motors	Servo motors	Servo motors
Table type	T-slot	Vacuum + T-slot	Vacuum + T-slot	T-slot
Max travel speed	20 m/min	40 m/min	30 m/min	30 m/min
Material height	200 mm	200 mm	200 mm	750 mm
Sizes	1325 / 1530 / 2030	1325 / 1530 / 2030	1325 / 1530 / 2030	2030

Why order through Geotech

One local partner from the first question to a running machine in your workshop.

01

Built to your specification

Every machine is made to order. Choose the size, spindle or laser power, controller and options — we confirm the exact build in writing before production starts.

02

18-month warranty, local service

Warranty, spare parts and technical support come from our team in Tbilisi — not from an overseas e-mail address.

03

Installation and training included

In Tbilisi we deliver, install and train your operator free of charge. Outside Tbilisi we do the same; only the travel cost is added.

04

Door-to-door in 8–12 weeks

Production, shipping and customs clearance are handled by us. You get one quote and one delivery date.

Frequently asked questions

What power supply do I need?

Compact routers (60, 90 and 12 series, compact ATC) run on 220 V single-phase. Full-sheet machines (1325, 1530, 2030) need 380 V three-phase. Tell us what you have in your workshop and we will confirm before you order.

How long does delivery take?

Every machine is built to order. Production and shipping to Georgia take 8–12 weeks from the confirmed order. We give you the exact date in the quote.

Are installation and training included?

Yes. In Tbilisi we deliver the machine, install it and train your operator free of charge. Outside Tbilisi we do the same; only the travel cost is added to the quote.

What warranty do I get?

18 months on the machine. Service, spare parts and technical support are provided by Geotech in Tbilisi.

Can I change the configuration?

Yes. Controller, motors, spindle or laser source, table type and options can be changed. Write what you need in the form and we will quote exactly that build.

Which software do the routers use?

The routers read standard G-code. You can prepare jobs in Type3, ArtCAM, Aspire, Fusion 360, Mastercam, UG and similar CAM programs. During training we show the full workflow from drawing to cutting.

Why order through Geotech instead of importing myself?

Our price includes delivery to your workshop, customs clearance, installation, training and an 18-month warranty with local service. When you import yourself you pay shipping, customs and installation separately — and support is overseas.

Not sure which machine fits?

Tell us the material, thickness and sheet size. We will recommend a configuration and send a quote.

Request a quote
