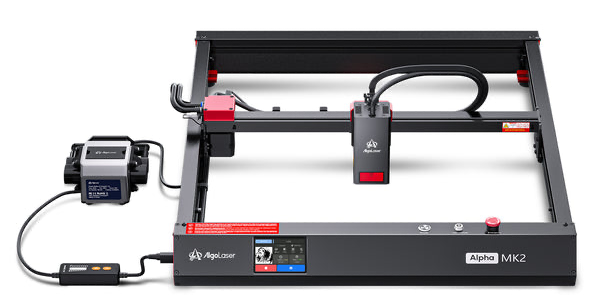

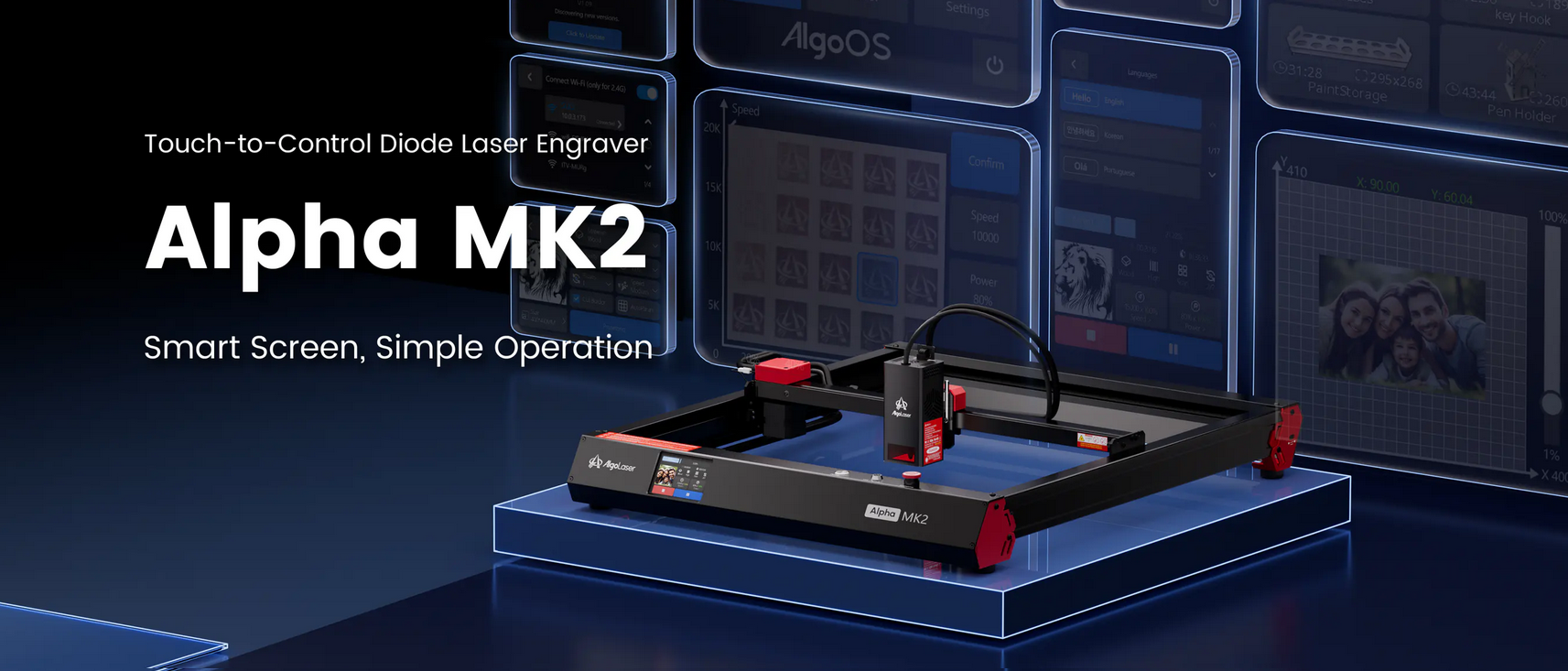

Alpha MK2 40W 20W & 10W Diode Laser Engraver


Laser Power

40W 20W 10W

Laser Spot Size

0.16*0.14mm 100% Power

0.06*0.05mm 30% Power

Laser Wavelength

455±5nm

Focal Length

55mm

Laser Head Life Expectancy

>10000 hours

Max Engraving Speed

20000mm/min

Movement Speed

30000mm/min

Focus Mode

Auto/Manual

Machine Power

144W

Power Supply

24V/6A

Motherboard Version

ALGO_LASER_

V2.1

Working Area

400*400mm

3.5'' IPS Screen

/

Offline Engraving

/

RGB Indicator LightRGB

/

Intergrated Air Pump



Connection Method

TF Card / USB C / Wifi-2.4G


Software Supported

LightBurn / LaserGRBL / AlgoLaser App





File Format Supported

JPG / SVG / PNG / BMP / G-code / CAD / AI / CDR / DWG, etc.



System Supported

Android / iOS / Windows / Mac OS / Web-based

Working Temperature

-15°C ~ 30°C

Product Weight

5KG

Product Size

X585*Y674

*Z200mm

Packing Weight

9.62KG

Packing Size

870*290*280mm(with pump)


Certification

FCC

CE

RoHS

FDA

Best One-Pass Cutting

Birch plywood

Basswood plywood

Eucalyptus plywood

Pine board

Paulownia board

White Oak

MDF

black acrylic

yellow acrylic

red acrylic

gray cardboard

Stainless steel plate

Bamboo


10mm

12mm

5mm

30mm

15mm

10mm

5mm

10mm

3mm

5mm

3mm

0.17mm

10mm

Max Cutting Thickness

Birch plywood

Basswood plywood

Eucalyptus plywood

Paulownia board

Black acrylic

Green acrylic

Red acrylic

MDF

Gray cardboard

White Oak

Bamboo

Pinewood


12mm / 3

20mm / 15

15mm / 6

20mm / 3

45mm / 15

8mm / 6

10mm / 6

12mm / 6

6mm / 2

20mm / 5

10mm / 1

30mm / 1



Engraving/Cutting Materials

Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones.
