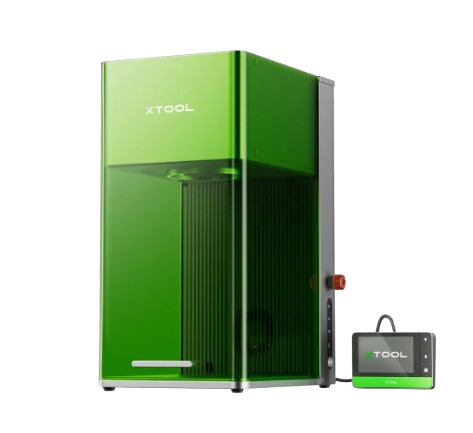

xTool F1 Ultra

F1 Ultra 20W Fiber & Diode Dual Laser Engraver


​


Features xTool F1 Ultra

Feature  Details

🔧 Laser Source / Power
  • 🎯 Dual-Laser System: 20 W Fiber Laser + 20 W Diode Laser
  • The fiber laser handles exceptional metal engraving, while the diode laser works on common materials
  • Fiber laser can cut up to: brass sheet 0.4 mm, stainless steel 0.3 mm, aluminum 0.2 mm
  • Diode laser can cut up to: wood 15 mm, acrylic 12 mm

📐 Working Area


  • 🖼 Standard: 220 × 220 mm (≈ 8.6″ × 8.6″)
  • ➕ With conveyor option: 220 × 500 mm

⚡ Max Working Speed
  • 🚀 Up to 10,000 mm/s

🔍 Laser Spot Size / Resolution
  • 📌 Fiber Laser: ~0.03 × 0.03 mm spot size
  • 📌 Diode Laser: ~0.08 × 0.10 mm spot size

🛠 Focus / Precision & Lens
  • 🧲 Auto-Focus with built-in smart camera
  • ✅ No need to change field lens thanks to microbeam technology and internal airflow design

📦 Product Size & Weight
  • 📏 Dimensions: 273 × 373 × 492 mm
  • ⚖️ Weight: 14.7 kg

🔗 Connectivity and Control
  • 📡 Wi-Fi & USB connection
  • 🖥 Compatible with xTool Creative Space and LightBurn software
  • 🧾 Supported file formats: SVG, DXF, JPG, JPEG, PNG, BMP

🔒 Safety & Build
  • 🛡 Fully enclosed cover to block harmful laser light and contain dust/fumes
  • 👁 Built-in 16 MP smart camera for live preview and accurate positioning

🎯 Material Support & Applications
  • 🌍 Works on almost all materials — metals, wood, acrylic, leather, slate, glass, ceramic, plastic, and more
  • 🏭 Equipped with Auto Streamline™ Production for efficient batch processing


Safe in All Aspects

  Auto Streamline™ feature

💡 The machine is using its Smart Camera (visible under the laser head) to automatically detect and align materials placed on the conveyor belt.

🎯 The green laser beams represent the scanning and engraving process — showing how the system tracks and engraves each item precisely.

⚙️ The conveyor moves materials continuously, allowing for batch engraving — multiple pieces are processed one after another without manual repositioning.

🚀 The text highlights how users can “simply put the materials on the conveyor” and receive finished batches in minutes, emphasizing speed, automation, and productivity.

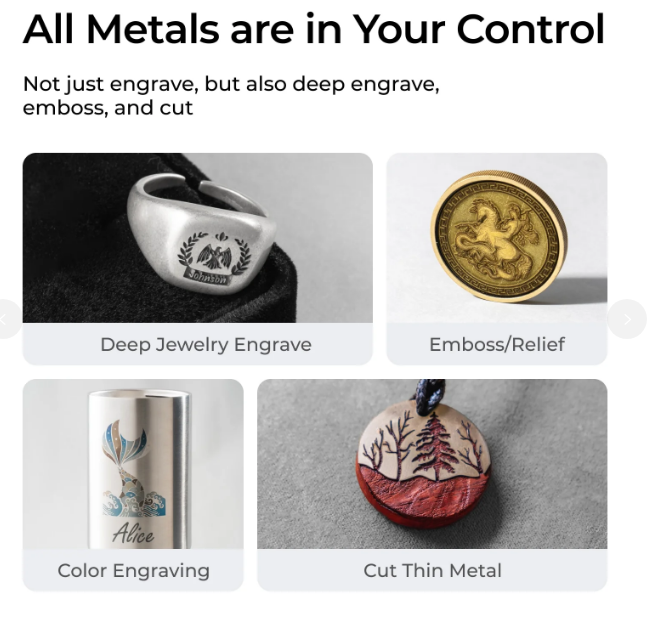

  ⚙️ All Metals are in Your Control

ImageCapabilityDescription
Top Left (Silver ring with crest)Deep Jewelry EngraveDemonstrates the ability to create clear, deep, and detailed engravings on small metal objects like jewelry.
Top Right (Gold coin/medallion)Emboss/ReliefIllustrates the function of creating raised (relief) or embossed designs, similar to those found on coinage.
Bottom Left (Metal cylinder with colored mermaid design)Color EngravingShows the capacity for adding intricate, multi-colored designs onto metal surfaces.
Bottom Right (Red and brown pendant/charm)Cut Thin MetalHighlights the precision cutting ability for creating shapes and designs out of thin metal materials.

Push Productivity to Factory-Level Subtitle

Scale Your Output Without Sacrificing Customization. We harness precision automation to turn your ideas into high-volume reality, faster than ever before.

Where innovation meets performance

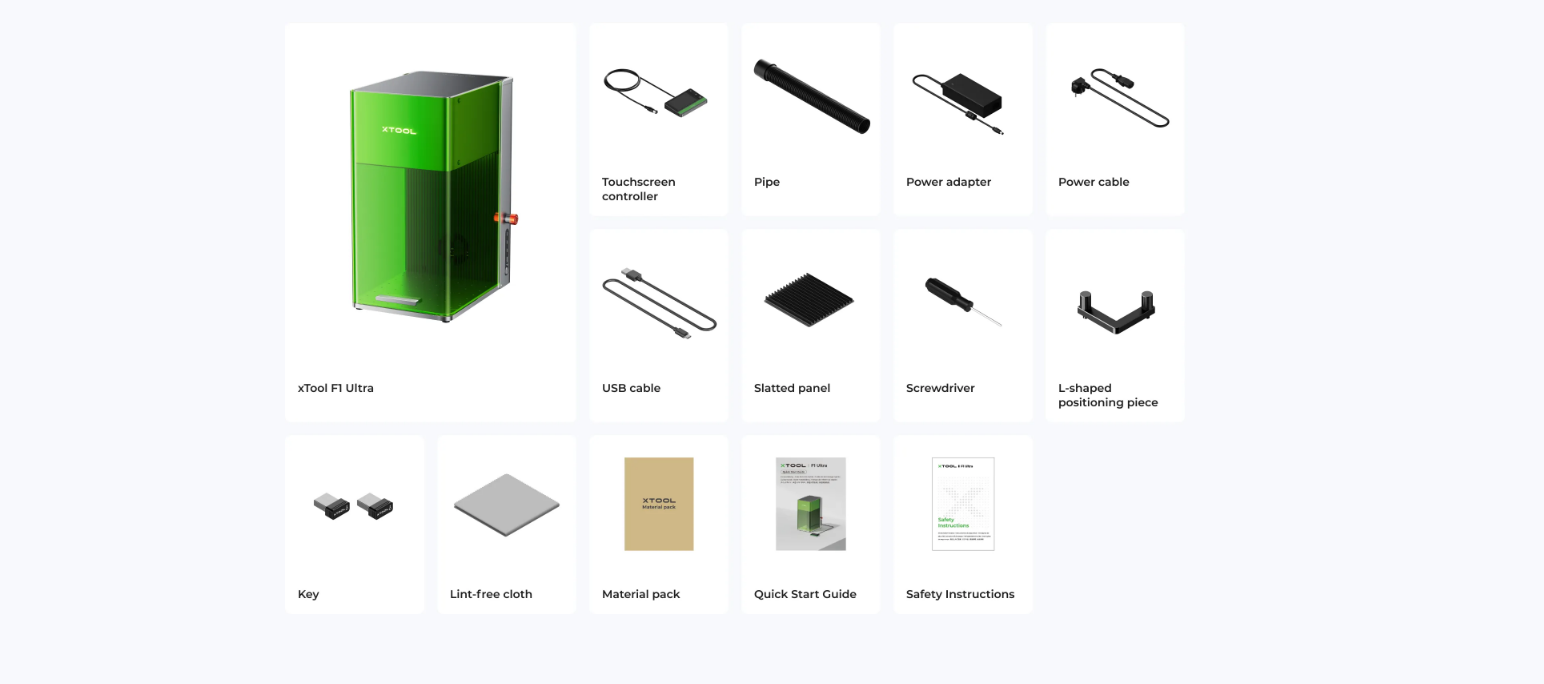

What Is Inside The Box 📦

CategoryComponent NameDescription / Use
Main UnitxTool F1 UltraThe primary machine unit, featuring a distinctive green and black casing.
ConnectivityTouchscreen controllerExternal device for direct control and operation of the unit.
USB cableUsed for connecting the F1 Ultra to a computer or other control devices.
PowerPower adapterConverts electricity to the required voltage for the machine.
Power cableConnects the power adapter to the electrical outlet.
AccessoriesPipeLikely used for ventilation or exhaust management.
Slatted panelA working base or platform for material placement.
ScrewdriverA basic tool for assembly or maintenance.
L-shaped positioning pieceUsed for accurately aligning materials on the working area.
KeyUsed to lock/unlock the main unit or safety enclosure.
Consumables & CareMaterial packA set of sample materials to get started with testing and projects.
Lint-free clothFor cleaning and maintaining the machine optics or exterior.
DocumentationQuick Start GuideStep-by-step instructions to get the machine set up quickly.
Safety InstructionsImportant documentation regarding the safe operation of the laser unit.

Why Choose Us for​​ AlgoLaser?


    • Seamless Setup & Installation
  • We fully assemble and configure your xTool F1 Ultra machine for you. No technical stress, no mistakes—your machine is ready for operation from day one.
    • Software Installation & Calibration
  • Our team installs all required software and performs precise calibration so your machine delivers accurate and consistent results from day one.
    • Comprehensive Professional Training​
  •  We provide in-depth, personalized training so you and your team can master every function of the machine with complete confidence and precision.
    • Spare Parts & Upgrade Assistance
  • We supply original spare parts and help you upgrade your machine whenever needed to ensure long-term performance and reliability.
    • Dedicated Technical Support — Anytime, Anywhere​
  •  Our expert engineers are always available for both online and on-site assistance, guaranteeing uninterrupted productivity and peace of mind.
    • Fast Technical Support for Breakdowns or Errors
  • Our support team responds quickly to diagnose and resolve any errors or malfunctions, minimizing downtime and keeping your workflow smooth.
    • 24/7 Dedicated Support
  • Whether you prefer online troubleshooting or on-site assistance, our technical team is always available to help you resolve issues quickly and efficiently.
    • Exclusive 1-Year Local Guarantee
  •  Enjoy the security of a full one-year local warranty backed by our commitment to excellence and customer satisfaction.
