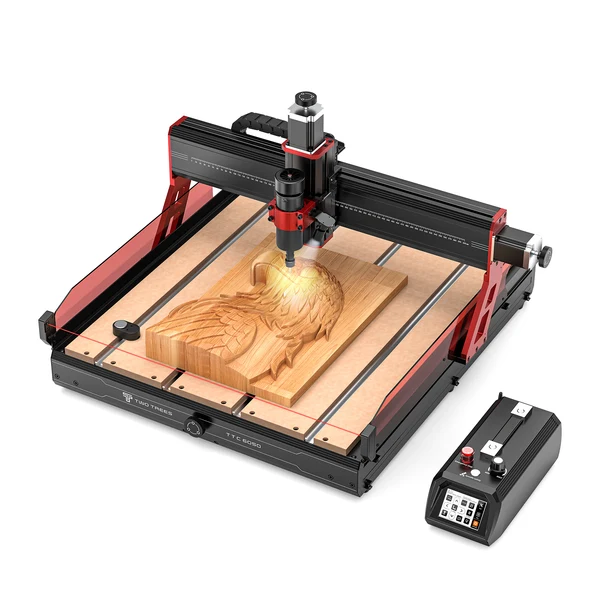

TTC6050 CNC Desktop Router
Professional CNC Cutting, Engraving & Carving for Larger Projects
The TTC6050 combines a 600 × 500 × 100 mm working area with a 500W spindle motor and precision CNC control, making it ideal for furniture components, signage, 2D and 3D carving, prototypes, custom parts and professional workshop applications

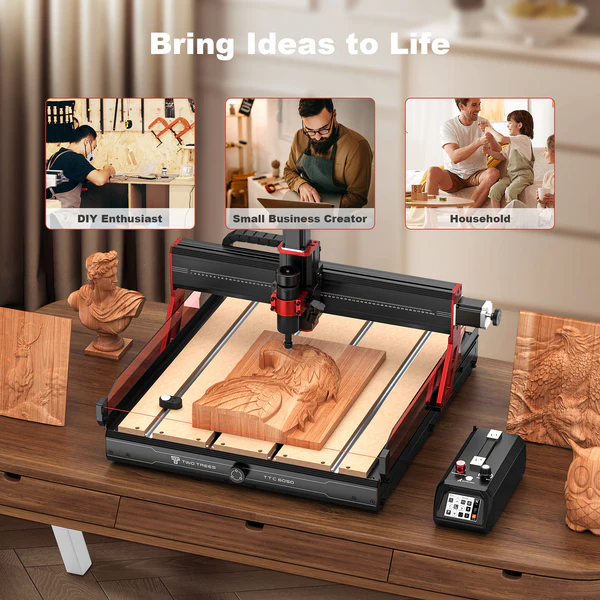

What Can You Create with the TTC6050?
- Furniture components and decorative panels
- Signs, logos, and advertising materials
- 2D and 3D engraving
- Prototypes and custom parts
- Wooden decorations and reliefs
- Acrylic and plastic products
- Suitable non-ferrous metal applications, depending on configuration and tooling
Who is it suitable for?
The GT6050 is a strong choice for furniture manufacturers, advertising companies, workshops, designers, manufacturers, and businesses looking to expand their CNC production capabilities.
Create larger. Work precisely. Produce consistently.

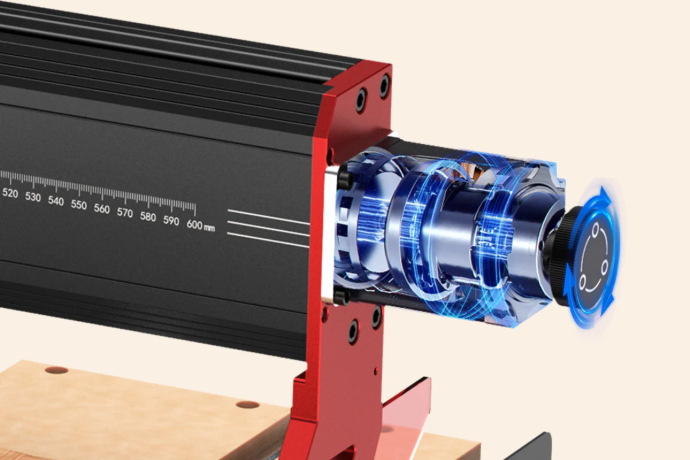

The powerful motor and high-torque design
500W Spindle Motor for Reliable Cutting
The 500W spindle motor delivers reliable cutting and engraving performance across a wide range of materials, including wood, MDF, acrylic, plastics, and selected non-ferrous metals.

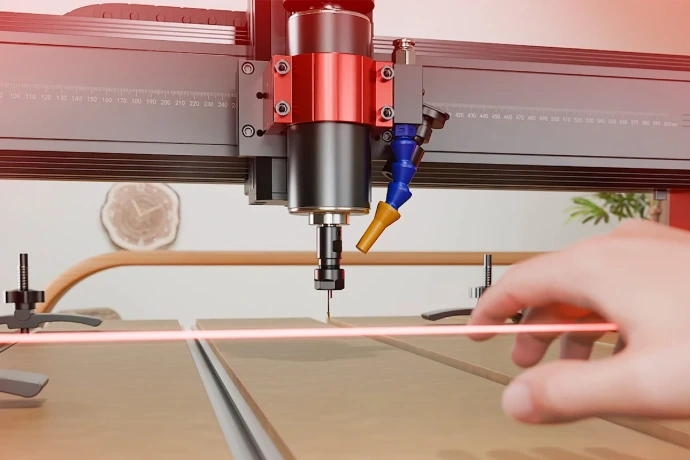

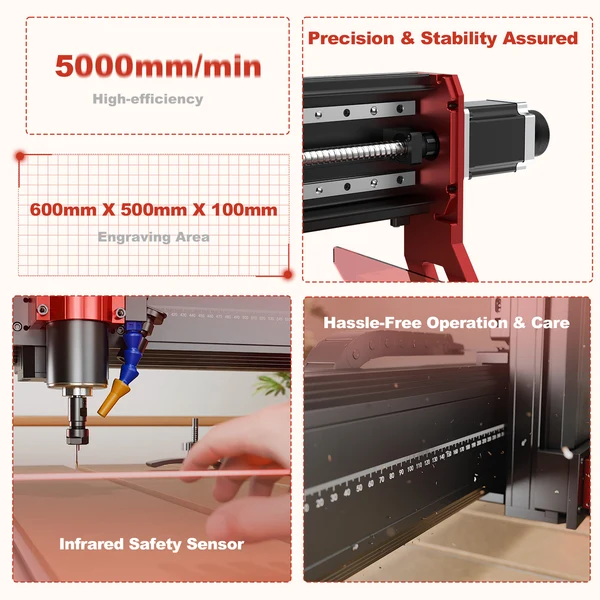

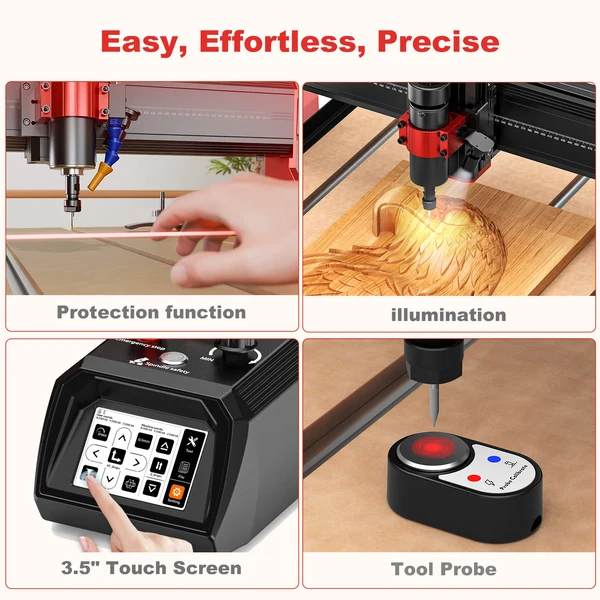

Infrared Safety Sensor
The infrared sensor continuously monitors the engraving area and automatically stops the spindle within one second when a safety risk is detected, providing enhanced protection during operation.
Replaceable MDF baseboards
The replaceable MDF baseboard provides a practical and cost-effective working surface that can be easily replaced when needed, helping protect the machine bed during cutting and engraving operations.
Powerful Performance. Efficient Production.
The TTC6050 combines a 500W spindle motor, high-speed performance, and a spacious working area to deliver an efficient and versatile CNC solution for professional workshops and small businesses.
Specifications
Device size
811 x 769x 530 mm(excl Control Box）
Material
Aluminum
Max milling speed
5000 mm/min
Main shaft speed
12000 rpm
Operating system
Windows, MacOS, Linux
Carving layer height
Non-metal 0.1mm-20mm | Metal 0.1mm-0.2mm
Touch screen support
Motion control, emergency stop, speed control, tool setting control, laser/CNC function switching, precision calibration
Net weight
35.9 kg
Supported tool diameters
0.5-7 mm (ER11 clip)
Maximum acceleration
500 mm/s²
Compatible software
VCarve,Fusion360,EASEL,CarvEco Maker
Voltage
24V
Compatible engraving materials
Plywood/MDF/Solid wood/Acrylic/Carbon fiber/Aluminum/Copper/Stainless steel
Touchscreen language switch
Chinese/English/German/Russian/Japanese /French/Portuguese/Spanish
Working area
600 x 500 x100 mm（23.6in*19.6in*3.9in）
Device display
3.5-inch IPS resistive color screen, touch (480 x 320 pixel resolution)
Spindle motor
500W Spindle Motor
Firmware
GRBL is open source and supports both CNC and laser (no firmware required)
Performance
110W Total | 15W In Standby Mode
Program support formats
.nc\.Gcode
