xTool Apparel Printer
- All Colored Fabrics: Stunning prints on all Apparel with all designs.
- One-Click Workflow: Fully auto print, powder apply & shake to bake (xTool shaker oven only).
- Smart Humidity Care: Built-in ultrasonic humidifier helps keep printing smooth, even during busy seasons.
- 24/7 Smart Care: Auto cleaning, wet capping, white ink circulation, plus app-based remote cleaning, monitoring, and alerts.
- Commercial Productivity: Epson I1600 dual printheads, G7 color accuracy, 50 sq ft/hr speed, 14" print width.
Industry's Latest Dual Print Head Technology
With Epson I1600 dual print heads, your designs come to life with HD resolution. The two heads work together seamlessly, with one delivering vibrant colors and the other applying white ink to ensure flawless color replication, even on dark fabrics.
G7 certification represents the best practices for color consistency and accuracy in printers.
The xTool Apparel Printer Plus ensures consistent DTF prints on all fabrics by precisely controlling the gray balance and tonality. We've invested two years in calibrating the G7 Certified color curve, guaranteeing accurate color reproduction and reducing the need for frequent adjustments.
Excel in Every Aspect
This exceptional level of detail is made possible by the Epson I1600 printheads, which feature a high-density array (NPI 300) of nozzles with ultra-fine ink drops (3.8 pL).
Routine Nozzle Clogging Check and Compensation
The printer performs regular checks on the nozzles by printing test patterns. Our AI camera then analyzes the output and initiates print head cleaning to resolve any issues. If a nozzle remains clogged after cleaning, the printer automatically compensates with unclogged nozzles during printing, ensuring print quality and extending the lifespan of the printhead.

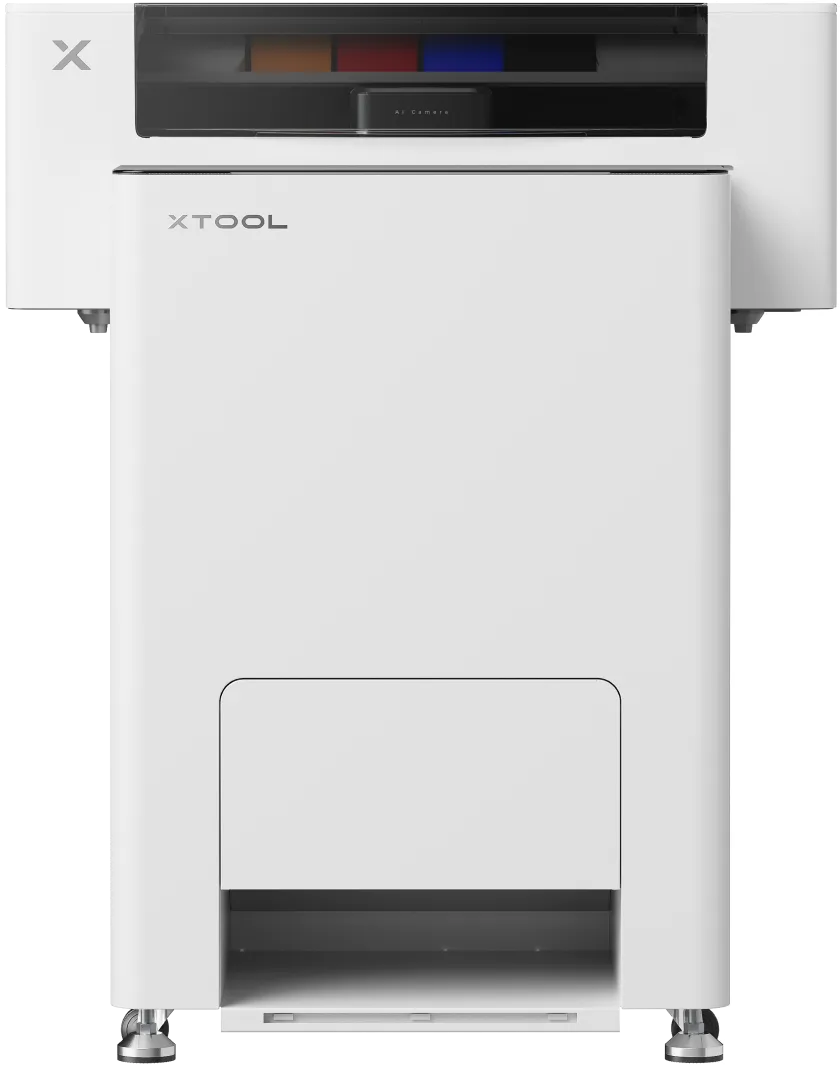

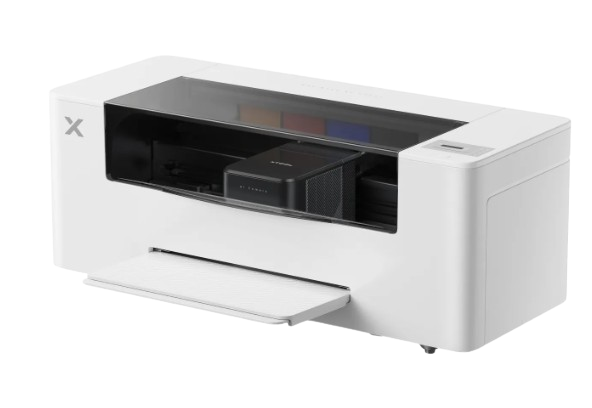

xTool Apparel Printer Plus — Specifications
| Category | Spec | Value |
|---|---|---|
| Dimensions | Printer Size | 35.63" x 14.37" x 14.03" (905 x 365 x 356.5 mm) |
| Printer Weight | 61.73 lbs (34 kg) | |
| Print Width | 14" (356 mm) | |
| Maximum Print Area | 14" x 18" (356 x 600 mm) | |
| Printing Capabilities | Materials | All fabrics — cotton, polyester, denim, canvas, spandex, nylon, and more |
| Print Head | Epson I1600 Dual Print Head | |
| Printing Resolution | 720 x 1800 DPI | |
| Minimum Ink Drop Size | 3.8 pL | |
| Printing Speed | Up to 50 sq ft/hr (720×1200 DPI) | |
| Printing Mode | Single Sheet-Fed | |
| Printing Color | CMYK + WWWW | |
| Software & Maintenance | Supported Software | xTool Studio (AI-Powered Design Generator, RIP, Auto Nesting, Printing Layout, Machine Control, etc.) |
| Software Compatibility | Android, iOS, Windows, macOS | |
| Calibration | AI-Powered Auto Calibration | |
| Maintenance | Auto Printhead Cleaning, Auto Humidification, Auto Ink Stir & Circulation (WIMS), Auto Wet Capping, App Remote Monitoring | |
| General | Voltage | AC 100V-120V / 220V-240V |
| Frequency | 50 Hz / 60 Hz | |
| Power Consumption | 350W | |
| Sleep Mode Power | 23.5W (~0.5 kWh/day) | |
| Operating Temperature | 59-89°F / 15-30°C (68-89°F / 20-30°C recommended) | |
| Operating Humidity | 30%-80% RH (50%-80% RH recommended) |
We fully assemble and configure your xTool Machines for you. No technical stress, no mistakes—your machine is ready for operation from day one.
Our team installs all required software and performs precise calibration so your machine delivers accurate and consistent results from day one.
We provide in-depth, personalized training so you and your team can master every function of the machine with complete confidence and precision.
We supply original spare parts and help you upgrade your machine whenever needed to ensure long-term performance and reliability.
Our expert engineers are always available for both online and on-site assistance, guaranteeing uninterrupted productivity and peace of mind.
Our support team responds quickly to diagnose and resolve any errors or malfunctions, minimizing downtime and keeping your workflow smooth.
Whether you prefer online troubleshooting or on-site assistance, our technical team is always available to help you resolve issues quickly and efficiently.
- Exclusive 1-Year Local Guarantee
- Exclusive 1-Year Local Guarantee
- Enjoy the security of a full one-year local warranty backed by our commitment to excellence and customer satisfaction.
