CNC Router Machine
we provide reliable CNC solutions for the Furniture, Advertising sectors.
What is a CNC Router?
To understand what exactly a CNC Router is, it is important to know what the word CNC means. CNC is an abbreviation of the English description “computerized numerical control“, and refers to an electronic method for controlling machine tools. Consequently, a CNC Router Machine is nothing more than a machine tool, which is numerically driven with computer assistance to process a variety of materials, such as Metals, wood, granite and much more.
A CNC router can mill complex shapes and fine contours in different materials by moving a high-quality tool through the clamped workpiece on a least three axis. The bridge itself is the X-axis and its back- and forward-movement symbolises the Y-axis. The up- and down movement of the milling tool stands for the Z-axis. The bridge looks like a portal, and this is why a CNC Router is also well-known as a portal milling machine.
What materials can Our CNC Router process?
A CNC router can machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
- Metals / Non-ferrous metals
- Brass
- Aluminium
- Titanium
- Noble metals such as silver, gold
- Steel and cast steel
- Wood
- Multiplex
- Plastics
- Acrylic glass
- Granite and marble
It is important to know that a few materials require spray cooling during the machining process, either for cooling down the milling tool, the material or to bind the chips. What can happen if a spray cooling is necessary but there isn’t any during the milling operation?
- Chips can clog or glue the grooves of the milling tool until it breaks.
- The blades of the milling cutter can get blunt quickly which prevents accurate milling results.
- Plastic can melt if it becomes too hot.
How Does the Machine Move? (Simple Axes Explanation)
- Left and Right → X-Axis
- Forward and Backward → Y-Axis
- Up and Down → Z-Axis
These movements allow the machine to cut flat designs and 3D shapes

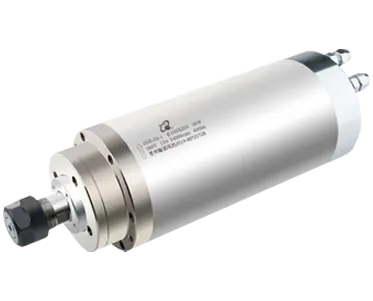

What Is the Spindle?
The spindle is the motor that holds and spins the cutting tool.
You can think of it like:
- A drill motor, but much stronger and more precise
The spindle:
Spins very fast
Cuts through Wood, Metal, Plastic, or Stone
What Is a Rotary Device?
The Rotary Device is also called the 4th Axis.
What Does It Do?
It allows the machine to rotate round objects while cutting.
Without a rotary:
- The machine works only on flat materials
With a rotary:
- The machine can work on round and cylindrical objects
What Is It Used For?
- Table legs
- Chair legs
- Columns
- Cylindrical statues
- Pipes
Think of it like:
A BBQ rotisserie that slowly turns food while it cooks — but here it turns material while it is being carved.

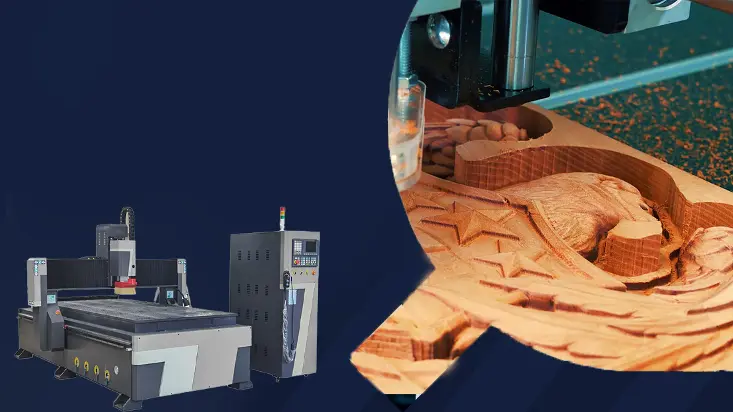

🌳 The Power of CNC Wood Engraving Machines
CNC Routers for Metals
What GT-C will provide To You?
| Quality & Durability | Stainless Steel. Quality that lasts. |
| Precision & Detail | |
| Aesthetics & Design | Luxury Shine. Solid, Unique Design. |
| Outdoor Use | Weatherproof. Perfect for Outdoors. |
| Custom Manufacturing | Your Custom Design. Milled in Steel. |
| Speed & Professionalism | CNC Professionalism. Fast, Reliable Delivery. |
CNC Machine Precision
Cutting Precision. The Toughest Details Finished Seamlessly.
Luxury CNC Craftsmanship. Precisely Inlaid Metal Art.
Zero Imperfection. CNC Precision in Sharp Corners.
Professional Finish. Smooth, Controlled Edges via C
CNC Routers for plastic
⚙️ Machining Plastic with a CNC Router
| Factor | Optimal Setting/Tool | Why it is Important |
| Tooling | Single Flute or O-Flute Cutters (especially for Acrylic). | These bits have larger channels to rapidly evacuate the plastic chips, preventing them from melting and sticking. |
| Speed (RPM) | High Spindle Speed (e.g., 18,000 RPM or higher). | Faster RPM means the tool cuts the plastic faster than the heat can dissipate into the material. |
| Feed Rate | High Feed Rate (moving the tool quickly). | A high feed rate creates a larger, thicker chip, which carries more heat away from the cutting zone. This minimizes heat transfer to the workpiece. |
| Chip Removal | Strong Vacuum System or Air Blast. | Essential for immediately clearing chips from the cut path before they re-weld to the plastic or the tool. |
| Cooling | Air Blast (compressed air directed at the cut). | Recommended for melting-prone plastics like HDPE and Acrylic to keep the temperature down without introducing liquids. |
Elevate Your Craft
Save Your Valuable Space: Place it on a standard workbench—no huge warehouse required! Ideal for home workshops and small commercial spaces.
Quality that Rivals Factories: Achieve high motion accuracy, allowing you to engrave the finest details on acrylic and thin wood, and ensuring professional-grade products by eliminating manual errors.
Boost Your Profit Margin Immediately: Eliminate reliance on external suppliers. Recover your initial investment quickly by selling your self-made products.
Quick Start-Up: Designed to be user-friendly, minimizing the learning curve. Your small team (or you alone) can begin production within just a few days.
Unlock New Markets (Versatility): Don't be limited! Cut wood, engrave plastic, and shape light aluminum sheets. Open doors to the gift, décor, and custom parts markets.
Why to choose Us for CNC Router Machine?
- Seamless Setup & Installation
- We fully assemble and configure your CNC Router Machine for you. No technical stress, no mistakes—your machine is ready for operation from day one.

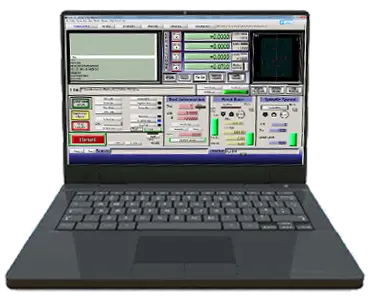

- Software Installation & Calibration
- Our team installs all required software and performs precise calibration so your machine delivers accurate and consistent results from day one.
- Comprehensive Professional Training
- We provide in-depth, personalized training so you and your team can master every function of the machine with complete confidence and precision.
- Spare Parts & Upgrade Assistance
- We supply original spare parts and help you upgrade your machine whenever needed to ensure long-term performance and reliability.
- Dedicated Technical Support — Anytime, Anywhere
- Our expert engineers are always available for both online and on-site assistance, guaranteeing uninterrupted productivity and peace of mind.
- Fast Technical Support for Breakdowns or Errors
- Our support team responds quickly to diagnose and resolve any errors or malfunctions, minimizing downtime and keeping your workflow smooth.
- Exclusive 1-Year Local Guarantee
- Enjoy the security of a full one-year local warranty backed by our commitment to excellence and customer satisfaction.
- 24/7 Dedicated Support
- Whether you prefer online troubleshooting or on-site assistance, our technical team is always available to help you resolve issues quickly and efficiently.
