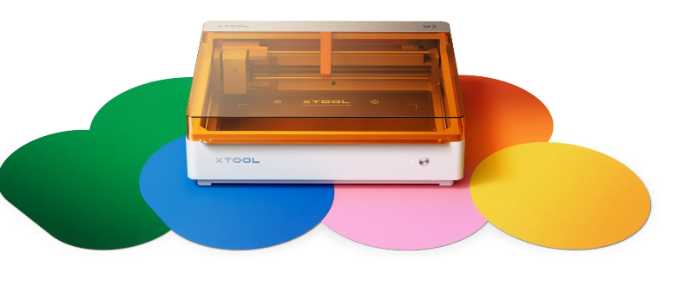

xTool M2
The Easiest Craft Laser with Color Printing for Everyday Making.
Dual-Camera System. Precision You Can Finally See.
As the first diode laser with dual cameras, M2 offers a real-time preview of your workspace. Backed by ACS™, it fuses this vision with motion control for a "Place & Go" experience—ensuring high accuracy while eliminating guesswork and wasted material.
From 2D to 3D Creations, Go Beyond Flat.
Structural Models Assemble interlocking parts into 3D structures. Move beyond the frame to build things from miniatures to functional models.
Safe for Home Use.
Compliant with Class 1 standards, the enclosed structure effectively shields users from laser radiation during normal operation.
Layered Builds
Stack precision-cut layers to create dimensional art. Transform flat designs into "2.5D" creations with depth and shadow.
Power Options for Every Creative Goal.
Switch between 10W/20W blue diode lasers, 3W IR, or the inkjet module to match your specific workflow. The M2 adapts to every project you imagine.
xTool M2 — Specifications
| Category | Spec | Value |
|---|---|---|
| Processing Capability | Module Type | Laser: 10W/20W Blue Diode Laser, 3W Infrared Laser (add-on) · Printing: CMYK Inkjet (add-on) |
| Processing Mode | Laser Cutting / Laser Engraving / Inkjet Printing | |
| Working Area | 10W/20W: 16.7" × 12.5" (426 × 320 mm) · 3W: 16.2" × 12.2" (412 × 310 mm) · Inkjet Mode: 11.8" × 11.5" (300 × 294 mm) | |
| Max. Rotary Engraving Diameter | 0 - 100 mm | |
| Max. Speed | 600 mm/s | |
| Max. Cutting Capacity | Basswood — 10W: 8mm/pass, 20W: 10mm/pass · Black Acrylic — 10W: 3mm/pass, 20W: 8mm/pass | |
| Easy Operation | Pre-assembled | Yes |
| Built-in Camera | 5MP Panoramic Camera & 2MP Close-range Camera | |
| Positioning Method | Camera positioning | |
| Focus Mode | Autofocus | |
| Accuracy & Precision | Laser Spot Size | 10W: 0.0016" × 0.0024" (0.04 × 0.06 mm) · 20W: 0.0024" × 0.0031" (0.06 × 0.08 mm) |
| Positioning Precision | Up to 0.2 mm (wide-angle: < 1.5 mm) | |
| Ranging Precision | 0.1 mm, Probe | |
| Motion Accuracy | 0.0004" (0.01 mm) | |
| General Information | Product Dimensions | 24" × 22.4" × 7" (610 × 569 × 180 mm) |
| Safety Certification | Class 1 Laser Safety (TÜV SÜD Certified) | |
| Product Weight | 27.1 lb (12.3 kg) | |
| Max. Machine Input Power | 200 W | |
| Power Adapter Input Voltage | 100V - 240V ~ AC 50/60 Hz | |
| Software | Supported Software | xTool Studio |
| Operating System | Windows / macOS | |
| Connection Methods | USB / Wi-Fi | |
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP | |
| Supported Materials | Cuttable | Wood, Opaque Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Felt |
| Engravable | Wood, Opaque Acrylic, Leather, Stainless Steel, Aluminum, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic | |
| Printable | Paper, Cardstock, Sticker Paper, Wood, Canvas, Fabric, Felt, Leather, Glass |
