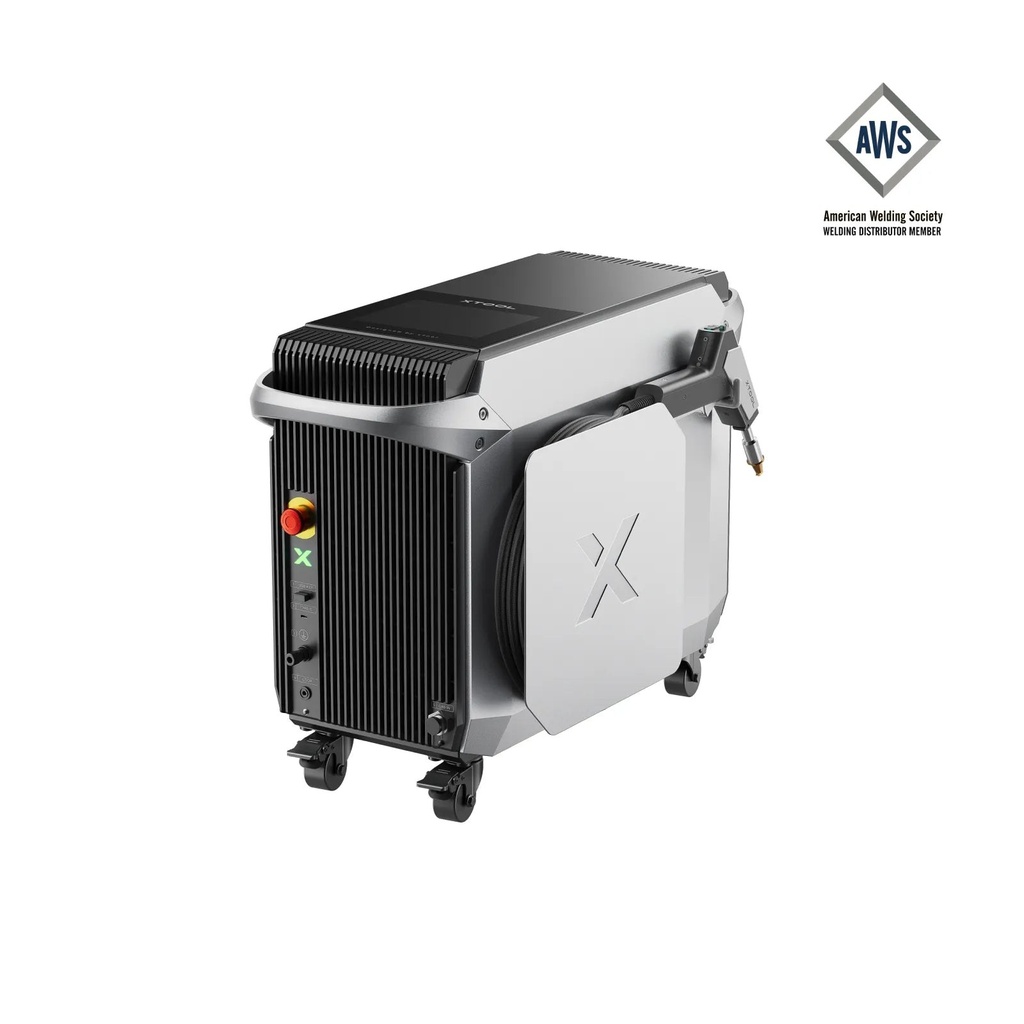

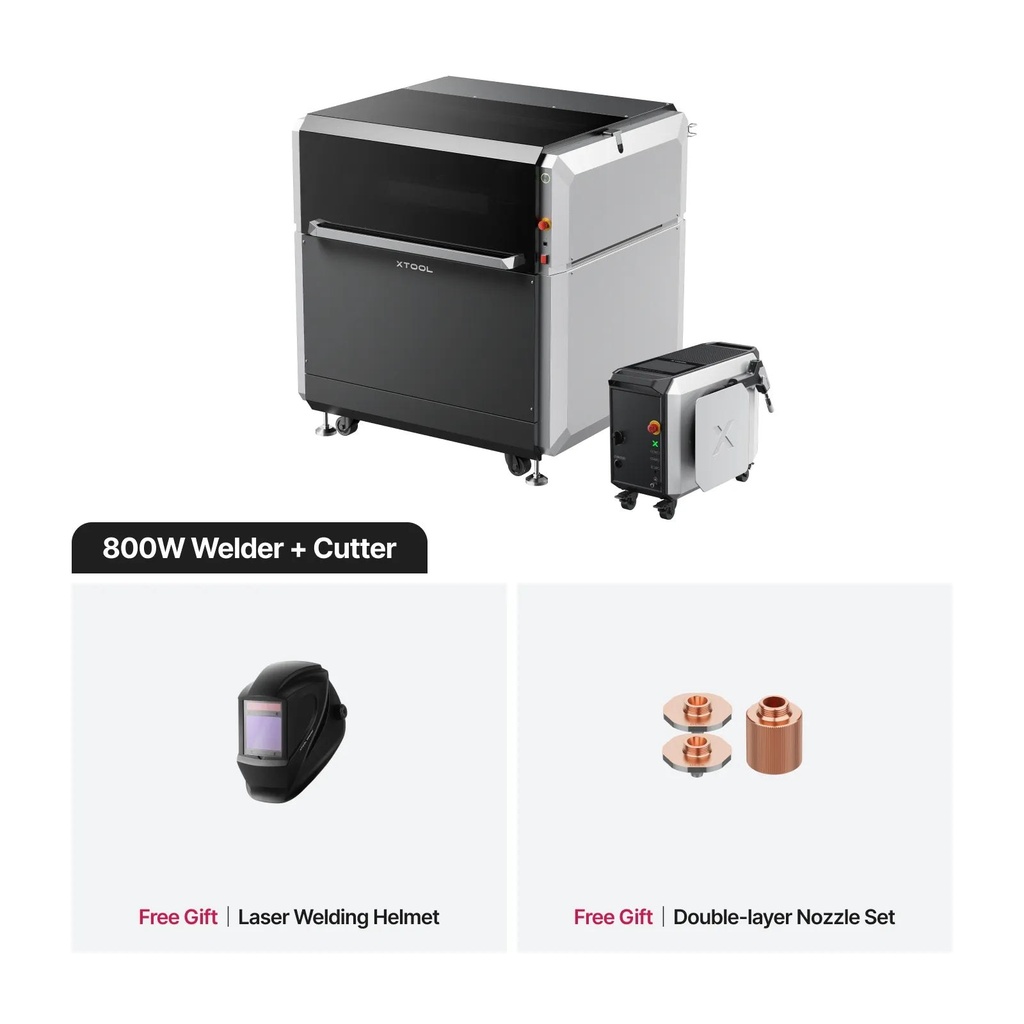

xTool MetalFab Laser Welder + CNC Cutter 800W

Complete metal workshop: the MetalFab handheld laser welder plus a 610 × 610 mm CNC laser cutting bed. Weld, cut and clean steel, aluminium and brass — with burr-free CNC cuts up to 10 mm carbon steel (1200W).

Key features
  • Handheld welding + CNC cutting + laser cleaning in one system
  • 610 × 610 mm cutting area with pass-through for longer sheets
  • Burr-free cuts: up to 10 mm carbon steel, 5 mm stainless, 4 mm aluminium (1200W)
  • Cutting speed up to 400 mm/s, ±0.1 mm accuracy
  • Air-cooled fiber laser — no chiller needed
XTOOL
54,119.00 ლ 54,119.00 ლ (Tax included)

  • Brand
  • Machine Type
  • Laser Power
  • Working Area
Add To Cart

Brand: xTool
Machine Type: Laser Welder
Laser Power: 800W
Working Area: 610 × 610 mm

Specifications

Laser power800W
Laser sourceFiber laser, 1080 ± 10 nm
Working area610 × 610 mm
Max. speed400 mm/s
Motion accuracy±0.1 mm
Z-axis travel90 mm
Cutting thickness1200W: up to 10 mm carbon steel, 5 mm stainless, 4 mm aluminium, 3 mm brass
Welding thickness0.2–5 mm steel; up to 4 mm aluminium and brass (1200W)
Recommended gasNitrogen or argon (99.99%)
CoolingAir-cooled
Input voltage200–240 V AC, 50/60 Hz
Laser safety classClass 4
Gross weight296.7 kg

Geotech service

  • Sold and supported by Geotech in Tbilisi — installation, training and service in Georgia.
