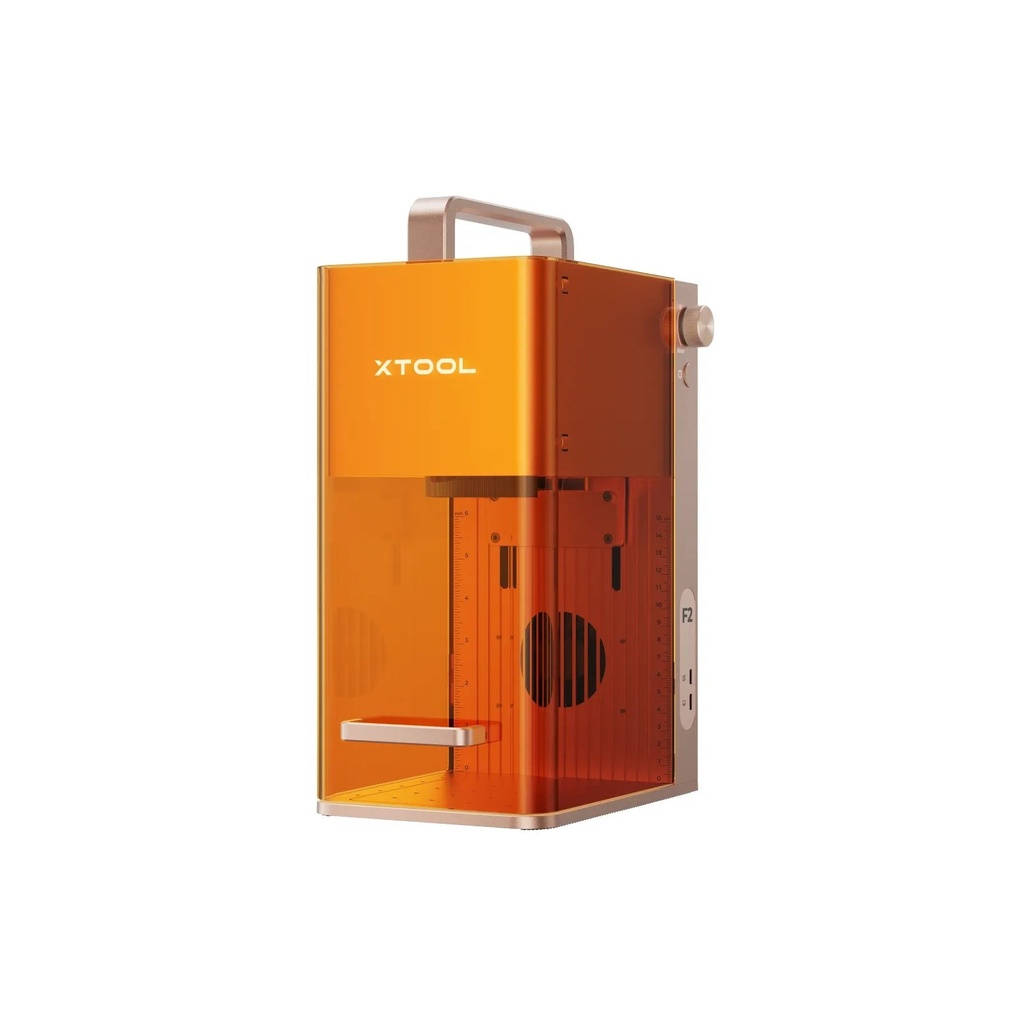

xTool F2 + Slide Extension

Ultra-compact portable dual laser with a 15W blue diode and a 5W infrared (1064 nm) laser. Engraves wood, leather, metal, jewellery and plastics at up to 6,000 mm/s, with a 50 MP camera for precise placement.

Key features

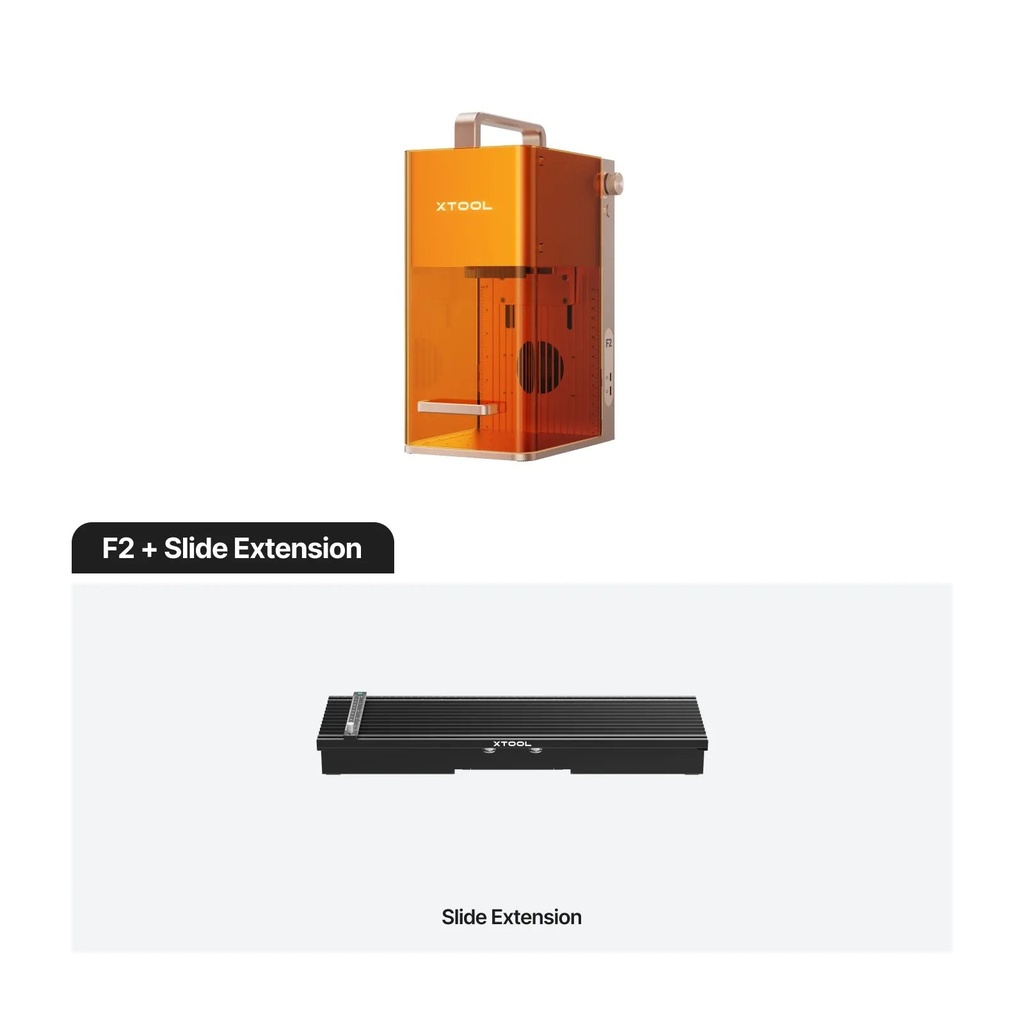

  • Bundle includes: Slide Extension
  • 15W diode + 5W 1064 nm infrared laser
  • Up to 6,000 mm/s; 115 × 115 mm area (400 × 115 mm with the slide extension)
  • 50 MP smart camera, autofocus and outline framing
  • Weighs only 4.6 kg — easy to take to markets and events
  • Cuts basswood up to 15 mm and dark acrylic up to 12 mm (multiple passes)
  • xTool Studio software; USB, Wi-Fi and Ethernet
XTOOL
6,319.00 ლ 6,319.00 ლ (Tax included)

  • Brand
  • Machine Type
  • Laser Power
  • Working Area
Add To Cart

Brand: xTool
Machine Type: Diode Laser Engraver
Laser Power: 15W diode + 5W IR
Working Area: 115 × 115 mm

Specifications

Laser source15W diode laser + 5W infrared laser (1064 nm)
Spot size0.08 × 0.06 mm (diode) / 0.03 × 0.03 mm (IR)
Working area115 × 115 mm (400 × 115 mm with slide extension)
Max. speed6,000 mm/s
Max. processing height120 mm
Max. rotary diameter120 mm
Motion accuracy0.00199 mm
Camera50 MP smart camera
FocusAutofocus / manual
SoftwarexTool Studio
Operating systemWindows / macOS
ConnectivityUSB / Wi-Fi / Ethernet
File formatsSVG, DXF, JPG, JPEG, PNG, BMP
Engraving materialsWood, leather, paper, coated metal, stainless steel, gold, silver, plastics, dark acrylic
Machine size175 × 237 × 334 mm
Net weight4.6 kg
Max. input power150 W
Laser safety classClass 4
Gross weight12.02 kg

Geotech service

  • Sold and supported by Geotech in Tbilisi — installation, training and service in Georgia.
