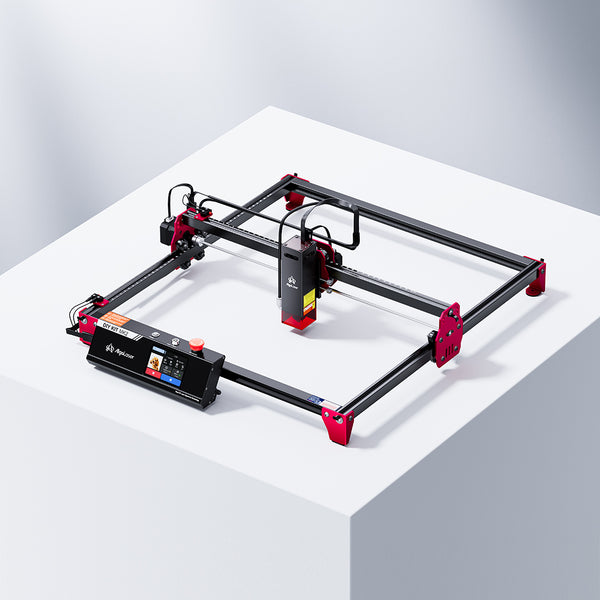

DIY KIT MK2


Laser Power

10W

5W

2W

Laser Spot Size

0.05mm*0.1mm

0.04mmx0.09mm

0.08mmx0.04mm

Laser Wavelength

455±5nm

455±5nm

455±5nm

Focal Length

5mm from hood

4.8mm from hood

5mm from hood

Laser Head Life  Expectancy

>10000 hours

>10000 hours

>10000 hours

Max Engraving Speed

12,000mm/min

12,000mm/min

12,000mm/min

Movement Speed

20000mm/min

20000mm/min

20000mm/min

Focus Mode

Manual

Manual

Manual

Machine Power

120W

72W

48W

Power Supply

24V/5A

24V/3A

24V/2A

Motherboard Version

ALGOLASER_DIY

_KIT_V1.2

ALGOLASER_DIY

_KIT_V1.2

ALGOLASER_DIY

_KIT_V1.2

Working Area

  400*400mm

400*400mm

400*400mm

Offline Engraving

✔



Connection Method

TF Card/USB C/Wifi-2.4G

TF Card/USB C/Wifi-2.4G

TF Card/USB C/Wifi-2.4G


Software Supported

LightBurn

LaserGRBL

AlgoLaser App

LightBurn

LaserGRBL

AlgoLaser App

LightBurn

LaserGRBL

AlgoLaser App


File Format Supported

JPG/SVG/PNG/

BMP/G-code/CAD/

AI/CDR/DWG, etc.

JPG/SVG/PNG/

BMP/G-code/CAD/

AI/CDR/DWG, etc.

JPG/SVG/PNG/

BMP/G-code/CAD/

AI/CDR/DWG, etc.


System Supported

Android/iOS

Windows/Mac OS

Web-based

Android/iOS

Windows/Mac OS

Web-based

Android/iOS

Windows/Mac OS

Web-based

Compatible Accessories

10W laser module, 20W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.

10W laser module, 20W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.

10W laser module, 20W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.

Product Weight

4.9KG

4.5kg

3.6kg

Product Size

642mm*602mm*

182mm

642mm*602mm*

146mm

642mm*602mm*

146mm

Packing Weight

5.67kg

5.27kg

4.9kg

Packing Size

660*310*330mm

670*320*330mm

660*310*160mm

Warranty

12 Months

12 Months

12 Months

Best One-Pass Cutting

Birch plywood

Pine Wood

Basswood plywood

Paulownia board

Cherry Wood

Walnut wood

Black acrylic

PolyVinyl Chloride

Gray Carboard

White Cardboard

Corrugated Board

Leather

Canvas

Denim

ABS sheet


4mm

5mm

6mm

12mm

5mm

5mm

3.5mm

5mm

3mm

3mm

5mm

2mm

0.6mm

0.8mm

4mm


4mm

/

5mm

3mm

3mm

/

/

5mm

2mm

1mm

5mm

2mm

0.6mm

0.8mm

2mm










Unavailable

Max Cutting Thickness

Basswood plywood

Eucalyptus plywood

Paulownia board

Black acrylic

Green acrylic

Red acrylic

MDF

Gray cardboard

Pinewood


13mm / 4

5mm / 4

12mm / 1

30mm / 25

8mm / 8

10mm / 10

5mm / 4

3mm / 1

20mm / 1


10mm / 10

5mm / 7

12mm / 13

8mm / 8

8mm / 12

3mm / 6

3mm / 2

3mm / 3

10mm / 8






                         Unavailable






Engraving/Cutting Materials

Cutting Material:All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, Cherry Wood, Walnut, MDF, cardboard, corrugated board, black acrylic, cork sheet, PolyVinyl Chloride, ABS sheet, Rubber, Depron foam, non-woven fabric, leather, colored paper.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, acrylic, PolyVinyl Chloride, Cardboard, Coated Duplex Board, Leather, Colored Paper, Canvas, Denim, Rubber, ABS, Bamboo, Stainless steel, Cold Rolled Sheet, Coated Metal, Dry Leaves, Clear Acrylic with Color Paper.

Cutting Material:All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, Cherry Wood, Walnut, MDF, cardboard, corrugated board, black acrylic, cork sheet, PolyVinyl Chloride, ABS sheet, Rubber, Depron foam, non-woven fabric, leather, colored paper.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, acrylic, PolyVinyl Chloride, Cardboard, Coated Duplex Board, Leather, Colored Paper, Canvas, Denim, Rubber, ABS, Bamboo, Stainless steel, Cold Rolled Sheet, Coated Metal, Dry Leaves, Clear Acrylic with Color Paper.

Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, acrylic, PolyVinyl Chloride, Cardboard, Coated Duplex Board, Leather, Colored Paper, Canvas, Denim, Rubber, ABS, Bamboo, Stainless steel, Cold Rolled Sheet, Coated Metal, Dry Leaves, Clear Acrylic with Color Paper.
