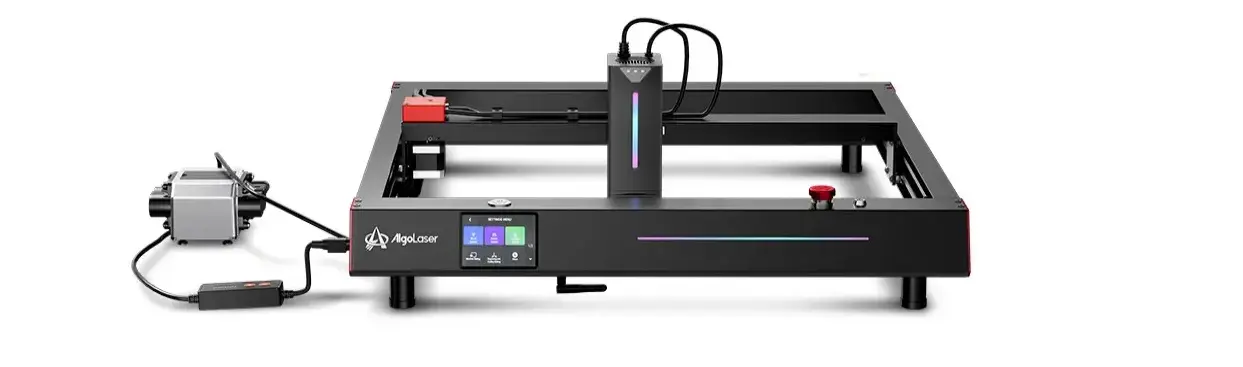

AlgoLaser Delta 22W Diode Laser Engraver
Laser Power
|
22W
|
|
Laser Spot Size
| 0.16*0.14mm 100% Power 0.06*0.05mm 30% Power |
Laser Wavelength
|
455±5nm
|
Focal Length
|
55mm
|
Laser Head Life Expectancy
|
>10000 hours
|
Max Engraving Speed
|
30000mm/min
|
Movement Speed
|
40,000mm/min
|
Machine Power
|
144W
|
Power Supply
|
24V/6A
|
Motherboard Version
| ALGO_LASER_ V3.1 |
Working Area
|
440*415mm
|
3.5'' IPS Screen
| ✔ |
Offline Engraving
| ✔ |
RGB Indicator LightRGB
|
✔
|
Intergrated Air Pump
|
✔
|
Connection Method
| TF Card USB-A/C Wifi-2.4G/5G U Disk |
Software Supported
| LightBurn LaserGRBL AlgoLaser App |
File Format Supported
| JPG SVG PNG BMP G-code CAD AI CDR DWG, etc. |
System Supported
| Android iOS Windows Mac OS Web-based |
Working Temperature
| -15°C ~ 30°C |
Product Weight
|
8.5KG
|
Product Size
| X650*Y730 *Z175mm |
Packing Weight
|
12.0KG
|
Packing Size
|
795*720*145mm
|
Certification
| FCC CE RoHS FDA |
Warranty
|
12 Months
|
Best One-Pass Cutting Birch plywood Basswood plywood Eucalyptus plywood Pine board Paulownia board White Oak MDF black acrylic yellow acrylic red acrylic gray cardboard Stainless steel plate Bamboo | 10mm 12mm 5mm 30mm 15mm 10mm 5mm 10mm 3mm 5mm 3mm 0.17mm 10mm
|
Max Cutting Thickness Birch plywood Basswood plywood Eucalyptus plywood Paulownia board Black acrylic Green acrylic Red acrylic MDF Gray cardboard White Oak Bamboo Pinewood | 12mm / 3 20mm / 15 15mm / 6 20mm / 3 45mm / 15 8mm / 6 10mm / 6 12mm / 6 6mm / 2 20mm / 5 10mm / 1 30mm / 1 |
Engraving/Cutting Materials
| Cutting Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather. Engraving Material: All kinds of wood, (but be aware of oily wood or wood with very high resin content, as there is a high risk of fire.) plywood, MDF, cardboard, corrugated board, acrylic board, cork sheet, polycarbonate, Depron foam, non-woven fabric, bamboo chips, leather, glass, ceramics, tiles, aluminum oxide, stainless steel, coating metal materials, darkstones. |

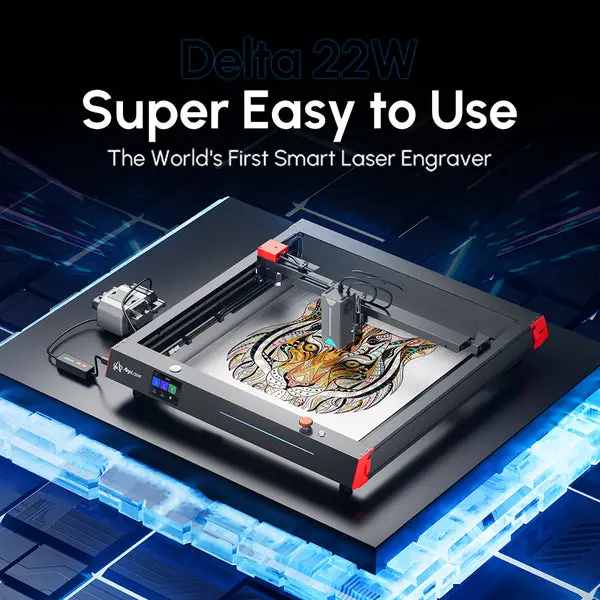

World's First Smart Laser Engraving Machine
