Laser Power
|
10W
| 20W |
Laser Spot Size
|
0.05mm*0.1mm
| 0.06mm × 0.08mm |
Laser Wavelength
|
455±5nm
| 455 ± 5nm |
Focal Length
|
5mm from hood
| 5 mm from hood |
Laser Head Life Expectancy
|
>10000 hours
|
>10000 hours
|
Max Engraving Speed
|
12,000mm/min
| 25,000mm/min |
Movement Speed
|
20000mm/min
| 30,000mm/min |
Focus Mode |
Manual
|
Manual
|
Machine Power
|
120W
| 240W |
Power Supply
|
24V/5A
| 24V/10A |
Motherboard Version
| ALGOLASER_DIY_KIT_V1.2 | ALGOLASER_DIY_KIT_V1.2 |
Working Area
|
400*430mm
|
400*400mm
|
Offline Engraving
|
✔
| ✔
|
Connection Method
|
TF Card/USB C/Wifi-2.4G
| TF Card / USB C / WiFi-2.4 G |
Software Supported
| LightBurn LaserGRBL AlgoLaser App | LightBurn LaserGRBL AlgoLaser App |
File Format Supported
| JPG/SVG/PNG/ BMP/G-code/CAD/ AI/CDR/DWG, etc. | JPG/SVG/PNG/ BMP/G-code/CAD/ AI/CDR/DWG, etc. |
System Supported
| Android/iOS Windows/Mac OS Web-based | Android/iOS Windows/Mac OS Web-based |
Compatible Accessories
|
10W laser module, 20W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera.
| 20W laser modules, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller, Riser, Camera |
Product Weight
|
4.9KG
| 5.1kg |
Warranty | 12 Months | 12Months |
· Easy for Beginners: AlgoOS with image library, visual preview, text input, freehand draw, original image engraving, and reverse engraving. Auto parameter matching makes setup simple.
· Pro Software Ready: Works with Light Burn/LaserGRBL and supports Wi-Fi remote control.
· Global-Friendly: Multi-language support and OTA updates for worldwide use.
· Exclusive 10W Power: Delivers 0.05 × 0.1 mm precision and 12,000 mm/min speed. Dual-CPU ensures smooth, stable performance.
· Massive Work Area: Expandable to 400 × 880 mm for larger projects and higher productivity.
· Safety-First: Class 1 certified with emergency stop, child lock, and Smart Enclosure 2.0.

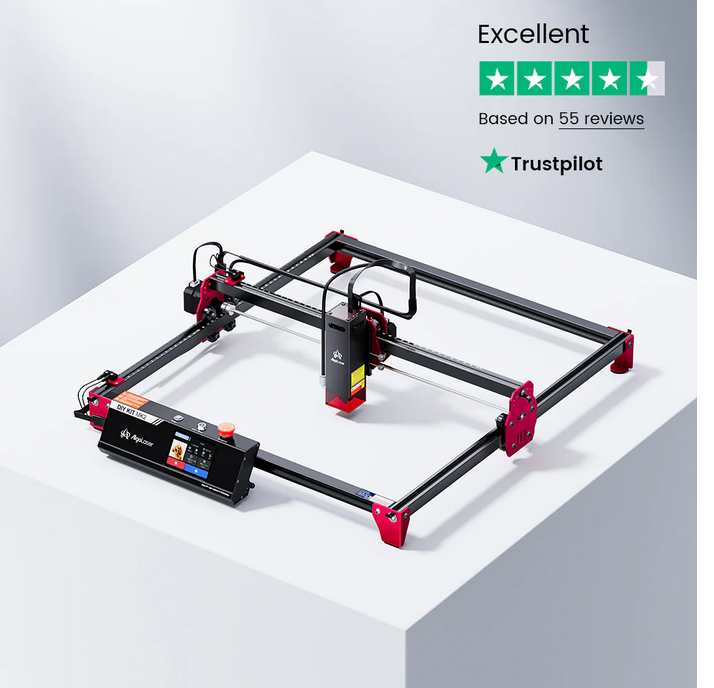

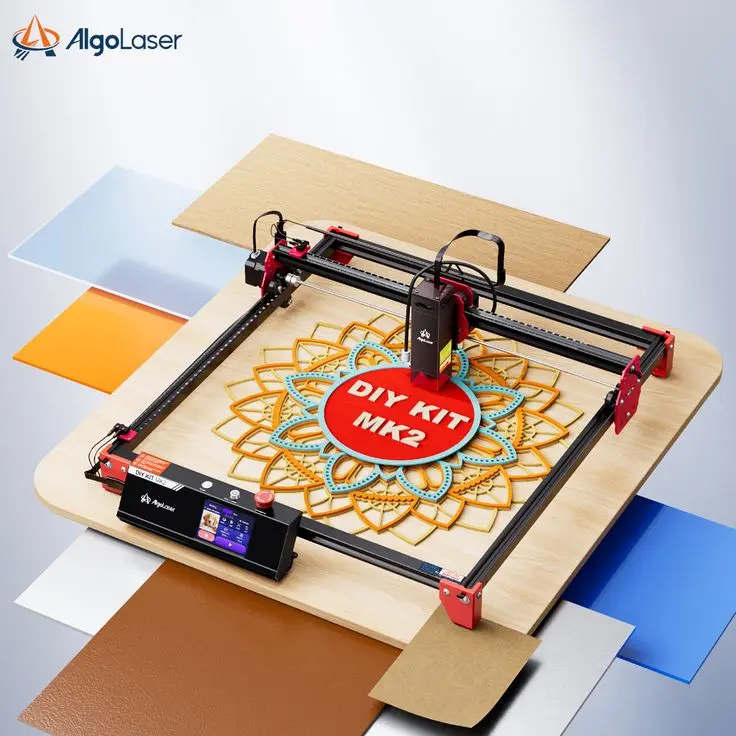

AlgoLaser DIY KIT MK2
Exclusive Technology
- ✅ 10W High-Performance Diode Laser
- ✅ Simple WiFi Wireless Control
- ✅ Built-in Intelligent Air Pump (Optional)
- ✅ Extended 400 × 800 mm Engraving Area (with extensions)
- ✅ Interrupt and Resume Function
Intelligent Engraving
- ✅ Built-in Material Library
- ✅ 0 Learning Curve – No Computer Needed
- ✅ Precise Positioning: Drag and Zoom
- ✅ Supports 300+ Materials
Safe and Reliable
- ✅ Level 1 Laser Safety (with optional intelligent dustproof box)
- ✅ Dust Cover 2.0 Optional

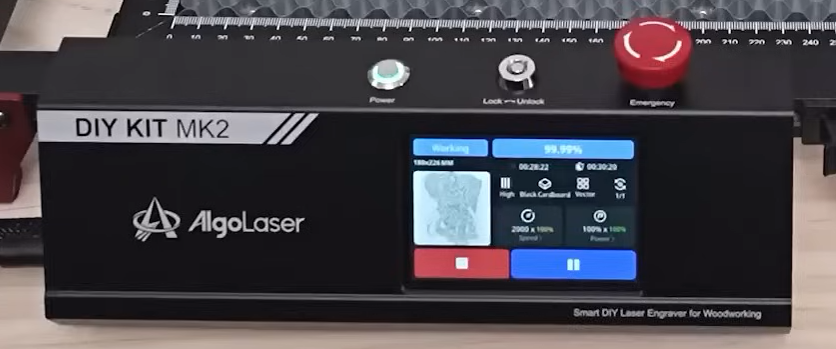

- ✅ Emergency Stop Button
- ✅ Child Lock for Added Safety
Provide clear and concise financial advices to make your financial wealth grow. And this, completely free of charge.
Showcase of Precision and Creativity
Experience unparalleled comfort, cutting-edge design, and performance-enhancing
technology with this latest innovation.

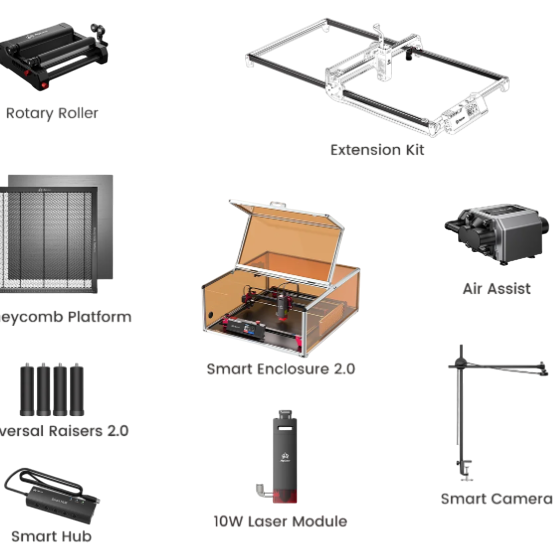

Accessories
for
DIY KIT MK2
What it does / why you’d use it:

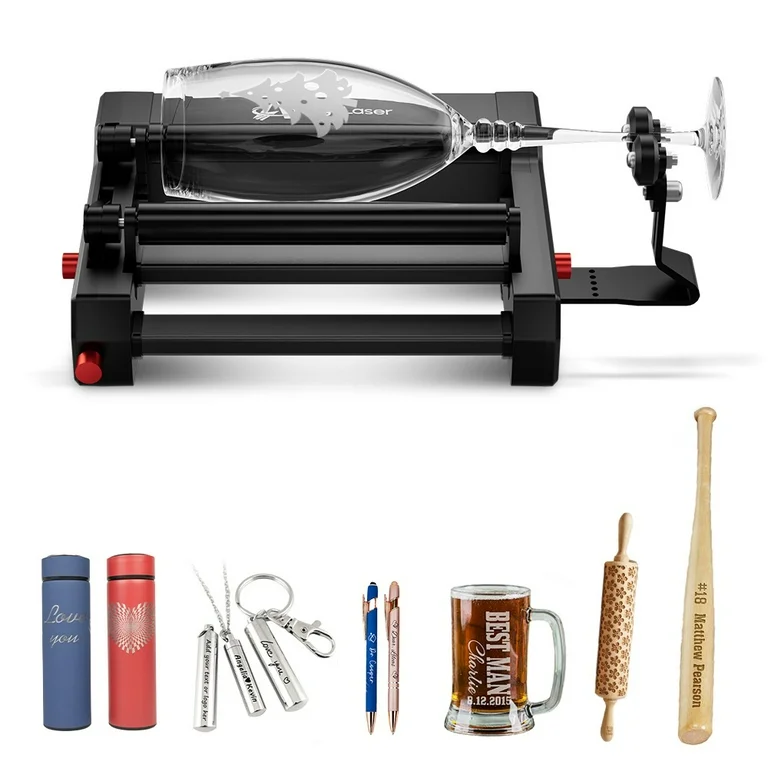

- Enables engraving on curved surfaces rather than just flat sheets.
- Let's you wrap text/designs around cylinders.
- Expands the kinds of items you can work on (not just flat boards).
- On the Algo Laser accessories page, the “Rotary Roller (RR2)” is listed as a compatible accessory.

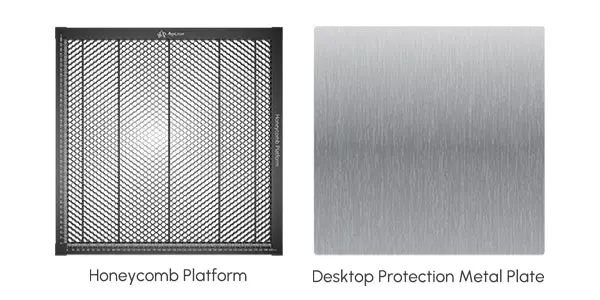

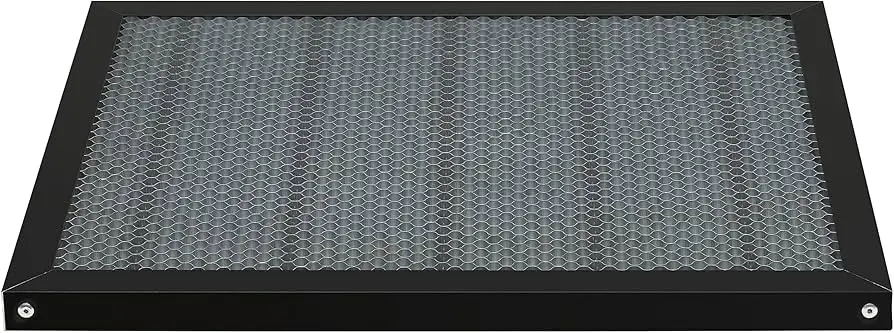

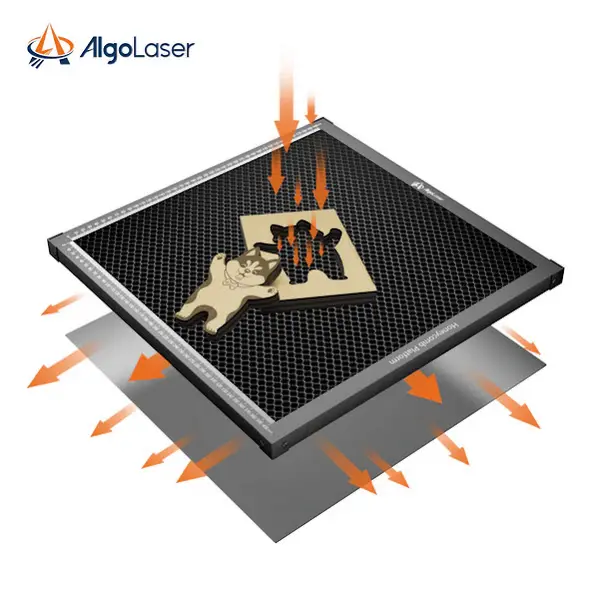

The “Honeycomb Platform” is a dedicated accessory that supports the engraver by providing an elevated grid bed structure with ventilation/slots. From the product page:
- It helps protect the desktop from damage.

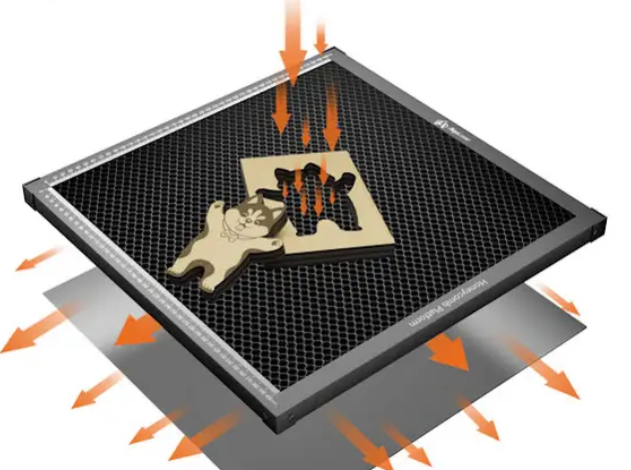

- It reduces smoke stains from laser engraving: the smoke from the square slot will flow out, reducing yellowing/staining.
- So if you’re engraving with the 10 W machine (especially materials that produce smoke or residue), the honeycomb bed is a good addition for cleaner results and safer material handling.
A metal grid platform, often honeycomb‐patterned, that sits on the machine bed under the workpiece.
- Helps with even support of the sheet/material you’re engraving or cutting.
- Allows laser light & debris/smoke to pass underneath (which improves cut/engrave quality and reduces back‐reflected light).
the machine’s bed (or your workbench) by absorbing/scattering stray laser reflections.
A metal grid platform
What it is: A metal grid platform, often honeycomb‐patterned, that sits on the machine bed under the workpiece.
What it does / why you’d use it:
- Helps with even support of the sheet/material you’re engraving or cutting.
- Allows laser light & debris/smoke to pass underneath (which improves cut/engrave quality and reduces back‐reflected light).
- Helps prevent damage to the machine’s bed (or your workbench) by absorbing/scattering stray laser reflections.
3. Honeycomb Platform

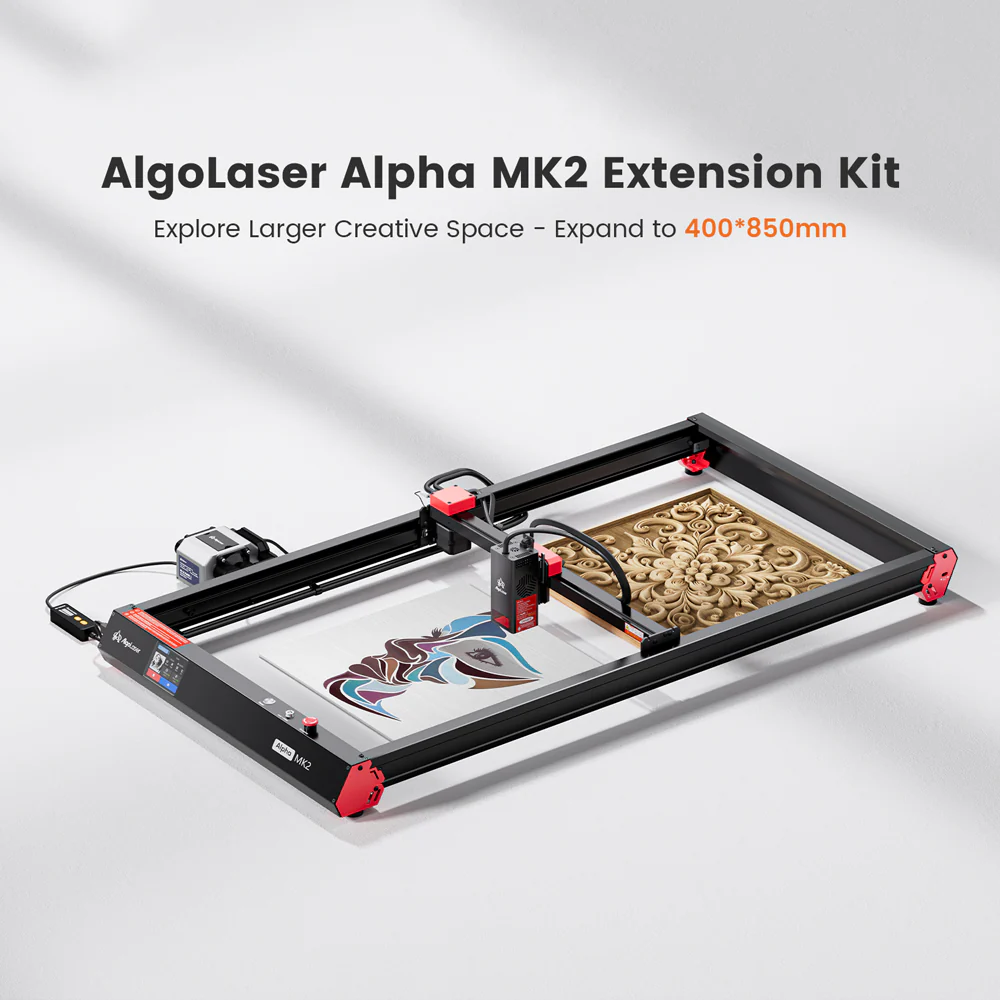

2. Extension Kit
What it is: A kit of components (longer rails/frames/belts) that extends the engraving / cutting working area of the machine.
What it does / why you’d use it:
-
For larger materials or bigger projects, you can extend the usable bed/area, so you’re not limited to the standard size.
- With the extension kit you can handle longer pieces or do batch engraving of many items in one go.

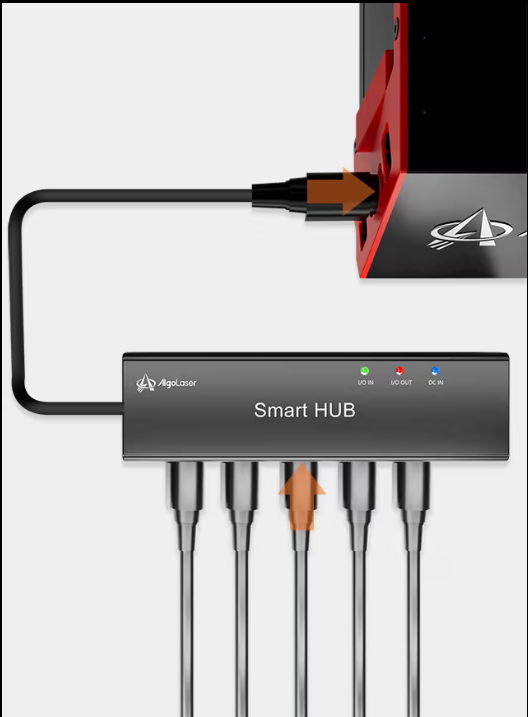

4. Smart Hub
What it is: An electronic module or interface component (“hub”) that adds smart/control features to the system.
What it does / why you’d use it:
- Could be a connectivity/control upgrade (e.g., Wi-Fi, app control, integration with camera or smart features).
- Allows more advanced control of the engraving process, remote control, monitoring etc.
- Using this accessory enhances usability beyond the basic machine.

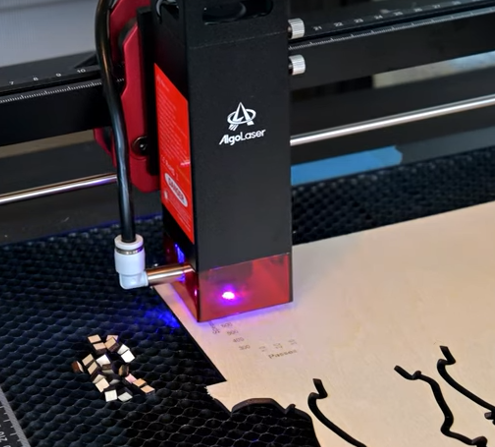

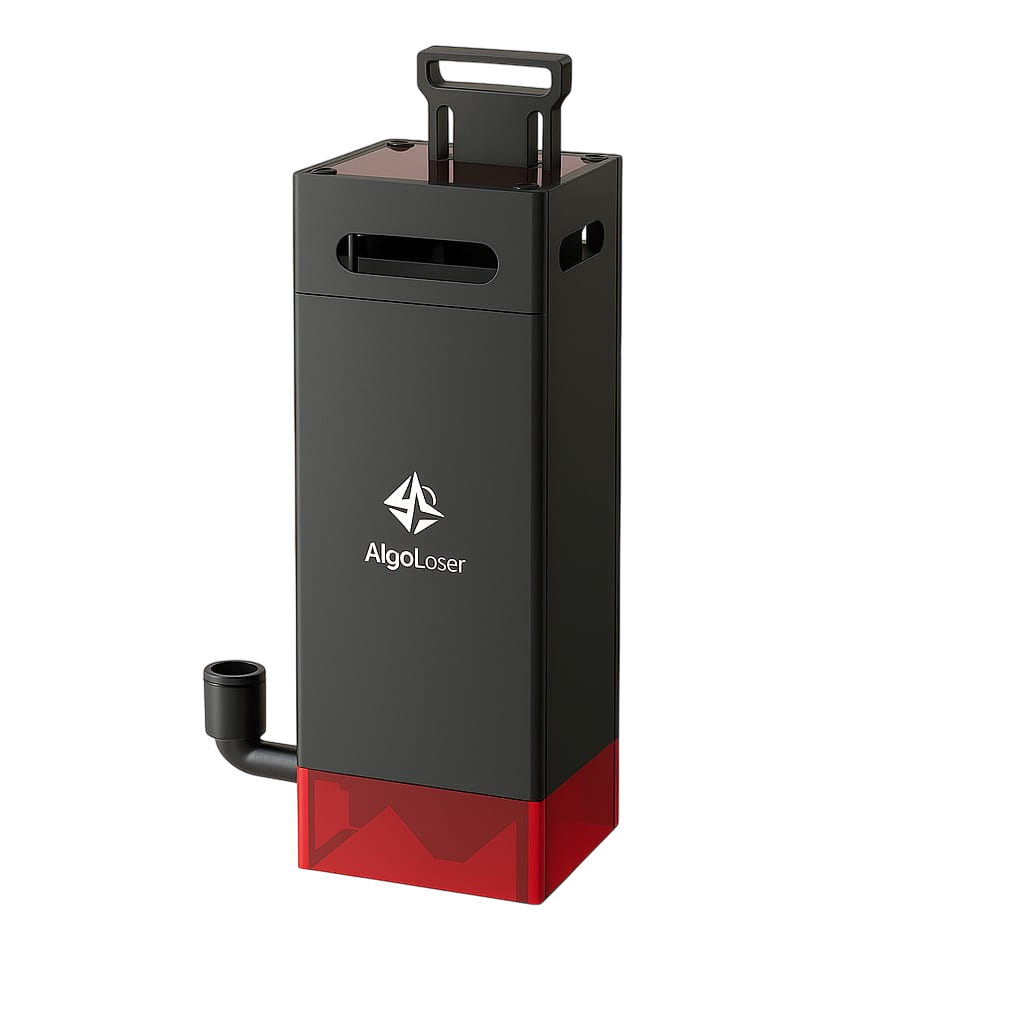

5. Laser Module 10W / 20W
What it is: The laser diode module (10 W version) component of the machine. It might be an upgrade from a lower power version or a replacement part.
What it does / why you’d use it:
- The laser module is the source that emits the laser beam for engraving/cutting.
- A higher-wattage module (like 10 W) can cut thicker materials, engrave faster, or produce deeper marks.
